Laboratory

S.C TOP Metrology S.R.L,  ofera servicii de metrologie, in laboratorul propriu sau la sediul beneficiarului. Toate echipamentele folosite sunt certificate conform standardelor internationale, garantand calitatea si precizia serviciilor noastre.

Laboratorul TOP Metrology este dotat cu urmatoarele echipamente:

Nikon LK V 15.10.8 Coordinate measuring machine CMM Table dimensions 1500 x 1000 x 800 mm Probe head Renishaw PH10M+ Contact measuring system Renishaw TP20 Volumetric accuracy 1.8 μm + L/350 Scanner Laser Nikon L100 Scanner accuracy 6 μm

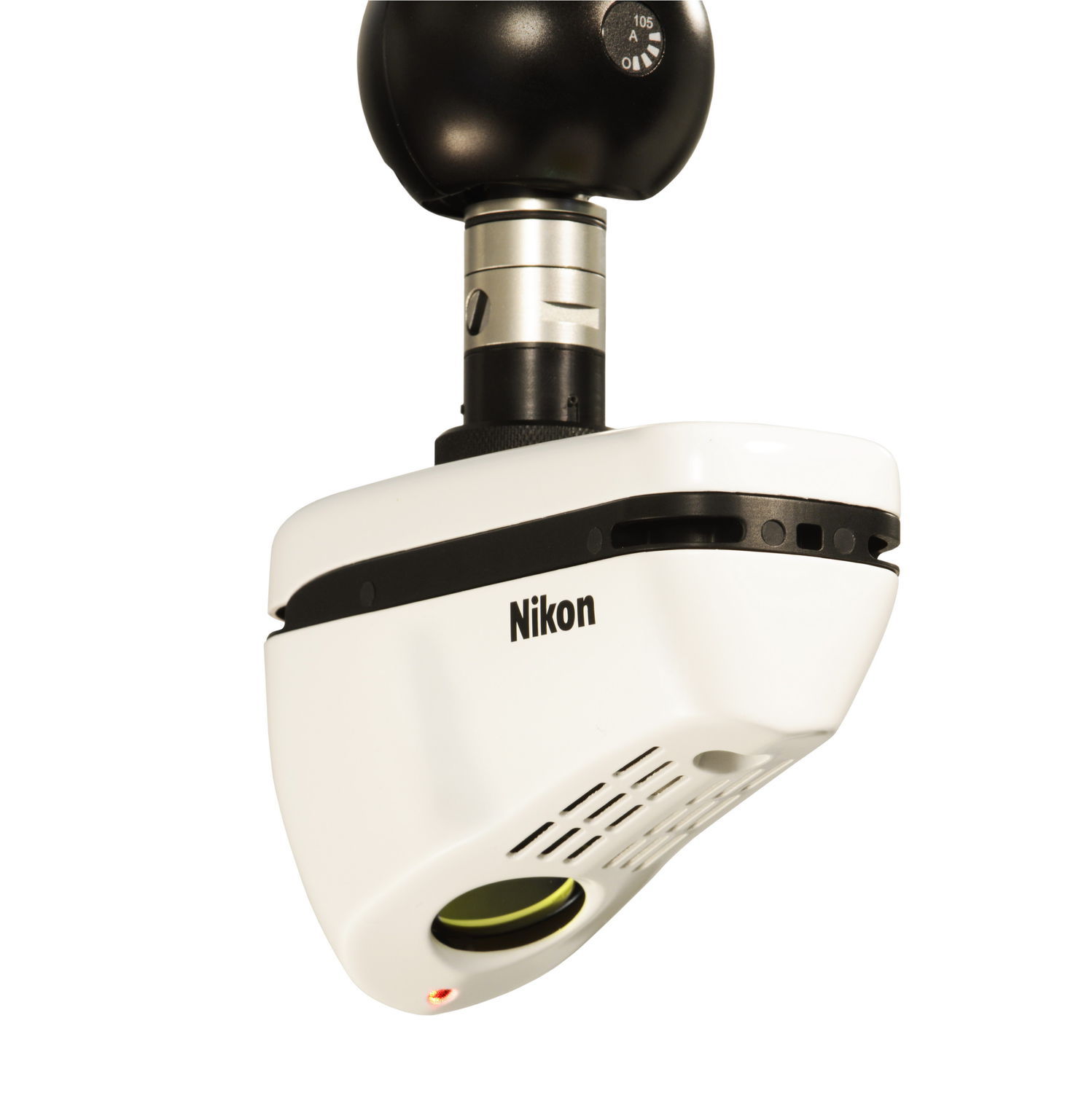

Scanner laser Nikon InSight L100 Accuracy 6 µm Scanning speed 200.000 point/sec FOV 110 mm

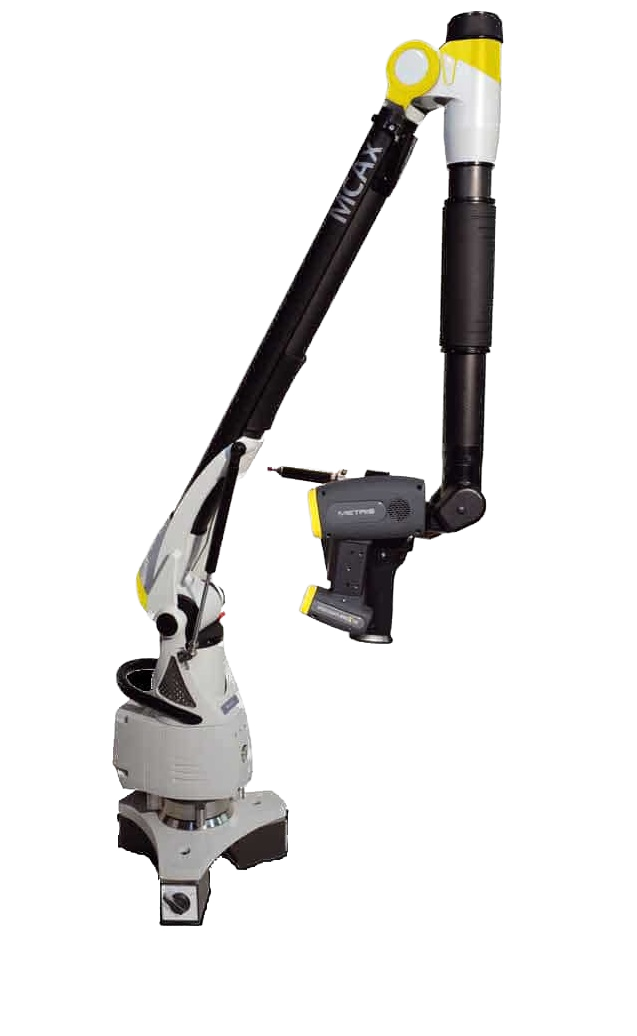

Nikon MCAx20+ articulated arm Measuring range 2 m Point repeatability 0.023 mm Volume length accuracy 0.033 mm Arm weight 8.2 Kg

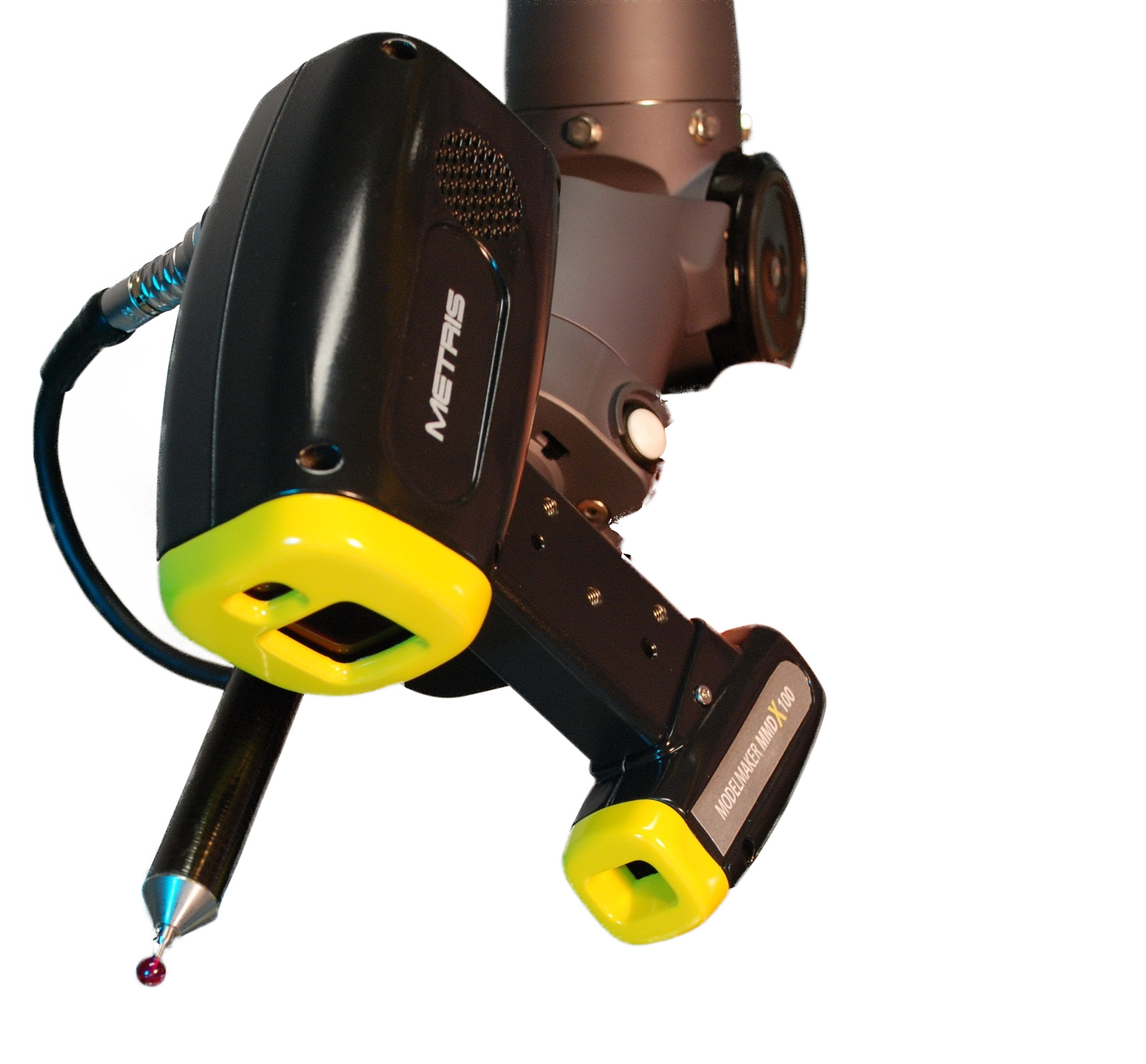

Nikon MMDx 100 handheld scanner Accuracy 7 µm Temperature compensation YES Points per line 1000 Weight 400 (+/-20) g Laser power Class 2

Nikon iNexiv VMA 2520 video measuring system Stroke (X x Y x Z) 250 x 200 x 200 mm Camera 3CCD color Zoom 0.35 – 3.5X optic 12 – 120X on screen Illumination 8 segment white LED ring Max. weight measured piece 15 Kg

Stereomicroscope Nikon SMZ 1270i Zoom ration 12.7:1 Zoom range 0.63 – 8X (0.63/1/2/3/4/6/8X) Total magnification 3.15 – 480X Weight 11.9 Kg

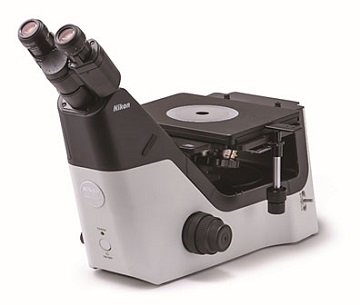

Inverted microscope Nikon Eclipse MA100N Optics CFI60 / CFI60-2 Observation image Reversed image Illumination LED Weight 10 Kg

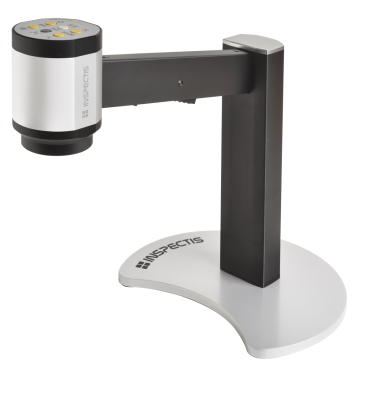

All in one inspection system Inspectis C12 Imager 1.3 CMOS, Sony 1.4 mpx Illumination LED Autofocus zoom 12X Image zoom 30X Working distance 240 mm Weight 4.2 Kg

Optical measuring machine for cylindrical parts Vicivision MTL 1 Measuring field Ø  x  L 60 x 300 mm Max. loadable sizes Ø  x  L 90 x 315 mm Resolution Ø  –  L  –  Rotation 0.1 µm – 0.1 µm – 0.001° Accuracy Ø  –  L 2+D[(mm)/100] µm 5+L[(mm)/100] µm Repeatability Ø  –  L 0.4 µm 3 µm Weight 130 Kg

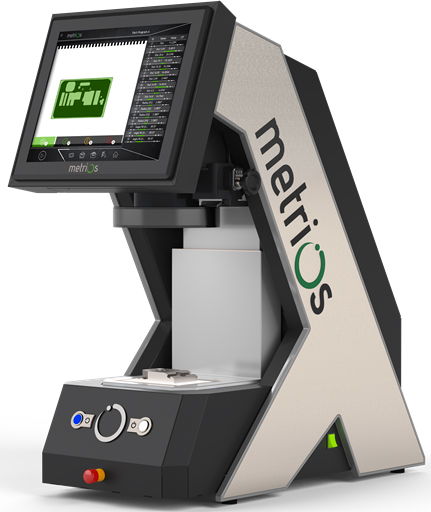

Optical measuring 2D system – Metrios MT7560 Max piece size on X – Y 75 x 60 mm Max piece size on Z 100 mm Max weight load 0.8 Kg Accuracy 5 μm Repeatability 2 μm Weight 95 Kg

Laser tracker system API Radian Measuring range 40 m System resolution 0.1 μm Accuracy +/- 10 μm

Tool presetting and measuring system Speroni STP Magis 600 Max. Ø 350 mm Max. H 600 mm Optic zoom 45X Axis resolution 1 μm Axis positioning repeatability + / – 2 μm

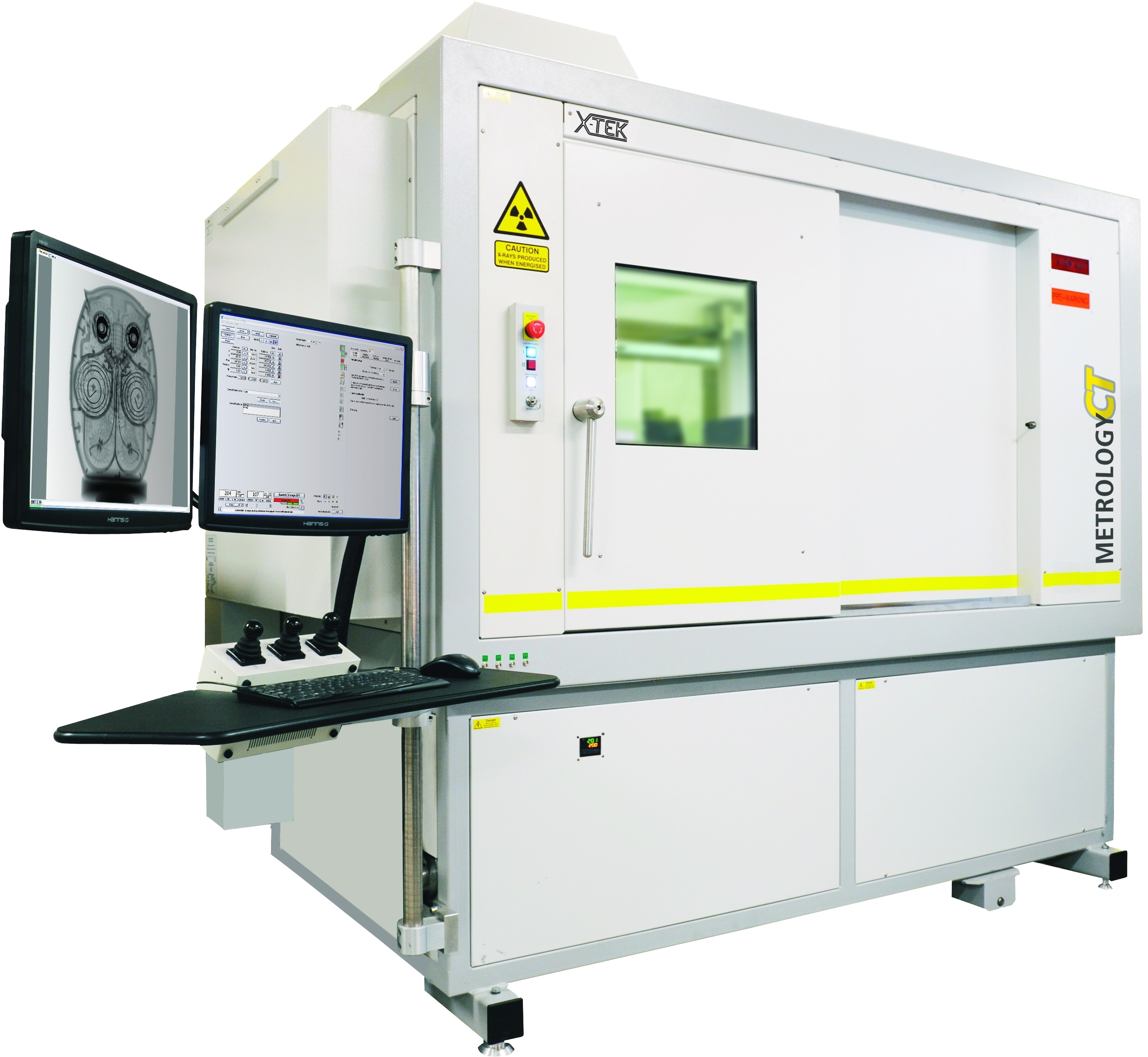

Industrial CT scanning – Computed tomography – Nikon XT H 225 ST Max. power 225 kV Axes 5 Axes travel X Y Z 450 x 350 x 725 mm Rotate 360 ° Max. sample weight 50 Kg

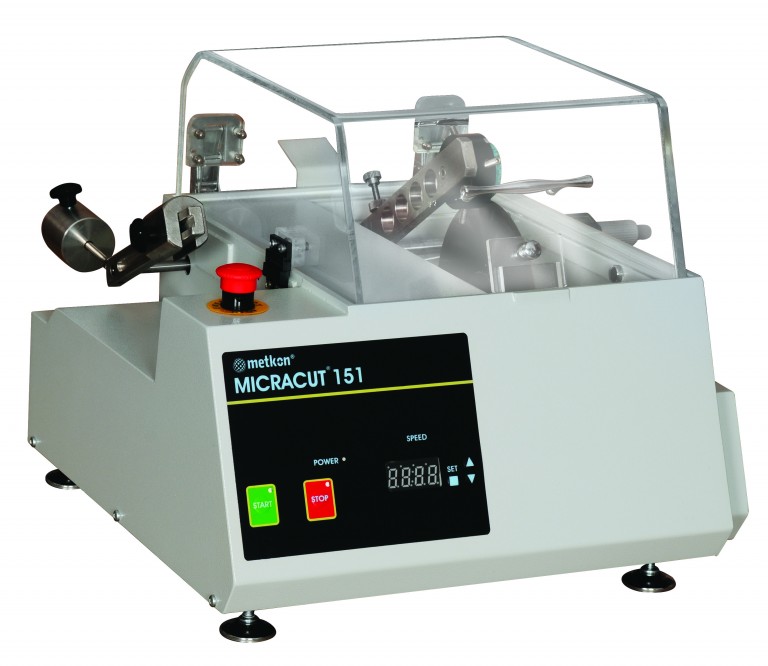

Abrasive cutting machine and precision – Metkon Micracut 151 Wheel diameter 150 mm Cutting capacity Ø 50 mm Wheel speed 0 – 1000 rpm Weight 28 Kg

Industrial Video endoscope – IT Concepts DVR5 Display 5 inch Illumination LED Probe 6 mm Length 2 m

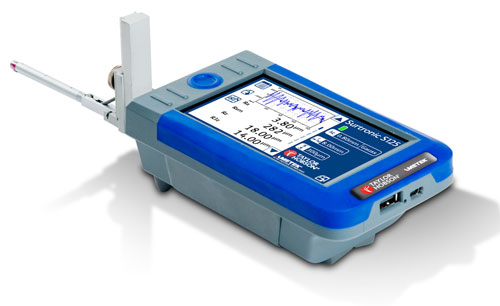

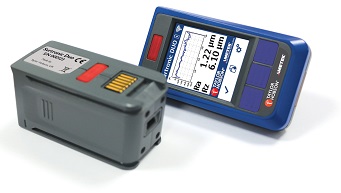

Portable surface roughness tester Taylor Hobson Surtronic Duo Rezolution 0.01  (Ra) max. 40 μm (Rz, Rv, Rp, Rt) max. 199 μm Repeatability 2% value + noise Precision 5% + 0.1 μm Noise 0.02 μm

Rugozimetru Taylor Hobson Surtronic S128
