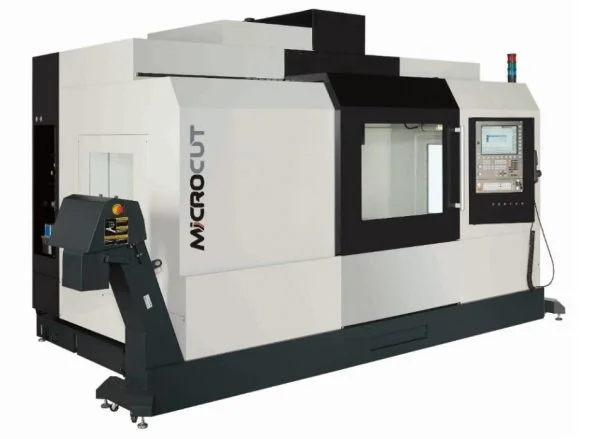

Centre de prelucrat verticale - Microcut Seria M
Seria M este un centru CNC compact de mare eficienta si prelucrare cu precizie ridicata. Dispune de ghidaje liniare ceea ce ofera o viteza si productivitate imbunatatita. Gama larga de viteze, schimbatoare automate de scule si variate aplicatii si nevoi ale clientilor din industrii percum aerospatiala, inginerie medicala, auto, prelucrari generale si inginerie mecanica.
Element |
| U.M. | M Series | |||||||
Model |
|
| M760 |
| M800 |
| M1050 | M1200 | M1400 | M1600 |
Dimensiune masa |
| mm | 900×410 |
| 900×520 |
| 1200 X600 | 1400 x 710 | 1500 x 600 | 1700 x 600 |
Sarcina maxima masa |
| kg | 350 |
| 450 |
| 800 | 1000 | 1000 | 1200 |
Cursa axa X |
| mm | 760 |
| 800 |
| 1050 | 1200 | 1400 | 1600 |
Cursa axa Y |
| mm | 440 |
| 500 |
| 600 | 730 | 800 | 850 |
Cursa axa Z |
| mm | 460 |
| 500 |
| 600 | 650 | 800 | 850 |
Sistem de actionare curea Taper/Speed |
| rpm | ISO 40/10000 |
| ISO 40/10000 |
| ISO 40/10000 | ISO 40/10000 | ISO 40/10000 | ISO 40/10000 |
Arbore cu actionare directa(opt) Tip/Viteza |
| rpm | ISO40/12000 |
| ISO40/12000 |
| ISO40/12000 | ISO40/12000 | ISO40/12000 | ISO40/12000 |
Arbore cu act built-in(opt) Tip/Viteza |
| rpm | HSK A63/14000 |
| HSK A63/14000 |
| HSK A63/14000 | HSK A63/14000 | HSK A63/14000 | HSK A63/14000 |
Motor |
| kW | Belt drive: 7.5 |
| Belt drive: 7.5 |
| Belt drive: 10 | Belt drive: 10 | Belt drive: 11 | Belt drive: 11 |
X/Y/Z Rata avans rapid |
| m/min | 30/30/30 |
| 30/30/30 |
| 30/30/30 | 30/30/30 | 30/30/30 | 30/30/30 |
Ghidaje liniare |
|
| Tip bila |
| Tip rola |
| Tip rola | Tip rola | Tip rola | Tip rola |
ATC (optiune) |
| scula | 24/30(opt) |
| 24/30(opt) |
| 24/30(opt) | 24/30(opt) | 24/30(opt) | 24/30(opt) |
Acuratete (X/Y/Z) | ||||||||||
Positionare |
| mm | 0.01/300 |
| 0.01/300 |
| 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
Repeatabilitate |
| mm | ±0.01 |
| ±0.01 |
| ±0.01 | ±0.01 | ±0.01 | ±0.01 |
