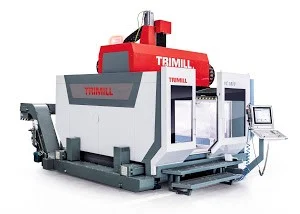

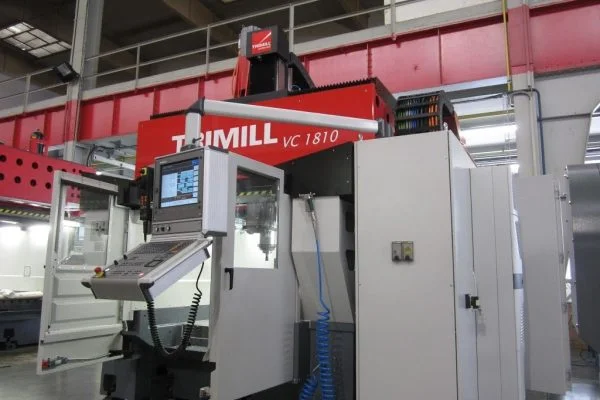

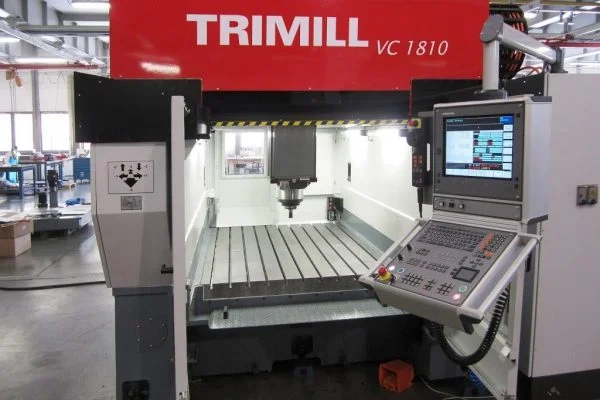

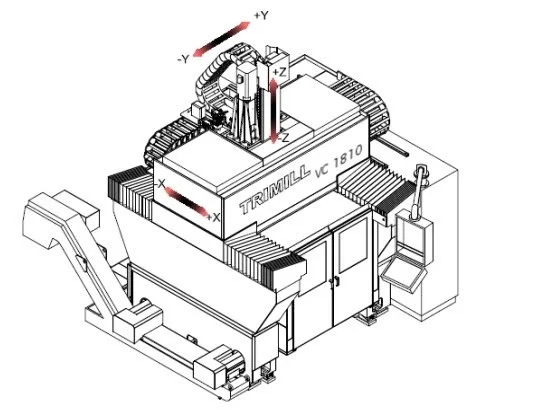

      Centru de prelucrare vertical 3 axe - Trimill VC1810

      • Rigid 3-axis machine, especially developed for the pressing tools, injection moulds and forging dies
      • Upper gantry portal machine for high dynamics and accuracy
      • Unique closed design of the cross-beam and cross-slide (box-in-box
        design) with internal, quadruple-guided, ram-type milling unit
      • Constantly perfect cutting results thanks to unique thermo-symmetric design
      • Stationary work piece for the highest surface qualities
      • High productivity – roughing and finishing operations in one set-up
      • Quick setup and commissioning of the machine – machine is transported
        fully assembled
      • Ergonomic configuration – easy access to the machine tool interior
      • Superior cost-performance ratio

      Technical data

      Travels
      X-axis [mm]1.800
      Y-axis [mm]1.000
      Z-axis [mm]700
      Optional spindle / head
      Power (S1/100%) [kW]25
      Power (S6/40%) [kW]33
      Torque (S1/100%) [Nm]200
      Torque (S6/100%) [Nm]264
      Speed [rpm]12.000
      Tool adoptionHSK – A100
      Optional spindle / head
      Power (S1/100%) [kW]29
      Power (S6/40%) [kW]38
      Torque (S1/100%) [Nm]69
      Torque (S6/100%) [Nm]91
      Speed [rpm]24.000
      Tool holderHSK – A63

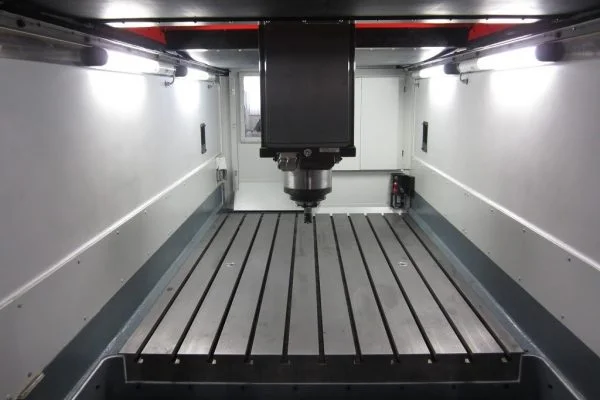

      Clamping surface [mm]2.000 x 1.370
      Workpiece weight [kg]10.000
      Feed rate [mm/min]30.000
      Acceleration [m/s2]3
      Weight of machine [kg]

      Описание

      • Rigid 3-axis machine, especially developed for the pressing tools, injection moulds and forging dies
      • Upper gantry portal machine for high dynamics and accuracy
      • Unique closed design of the cross-beam and cross-slide (box-in-box
        design) with internal, quadruple-guided, ram-type milling unit
      • Constantly perfect cutting results thanks to unique thermo-symmetric design
      • Stationary work piece for the highest surface qualities
      • High productivity – roughing and finishing operations in one set-up
      • Quick setup and commissioning of the machine – machine is transported
        fully assembled
      • Ergonomic configuration – easy access to the machine tool interior
      • Superior cost-performance ratio

      Technical data

      Travels
      X-axis [mm]1.800
      Y-axis [mm]1.000
      Z-axis [mm]700
      Optional spindle / head
      Power (S1/100%) [kW]25
      Power (S6/40%) [kW]33
      Torque (S1/100%) [Nm]200
      Torque (S6/100%) [Nm]264
      Speed [rpm]12.000
      Tool adoptionHSK – A100
      Optional spindle / head
      Power (S1/100%) [kW]29
      Power (S6/40%) [kW]38
      Torque (S1/100%) [Nm]69
      Torque (S6/100%) [Nm]91
      Speed [rpm]24.000
      Tool holderHSK – A63
      Clamping surface [mm]2.000 x 1.370
      Workpiece weight [kg]10.000
      Feed rate [mm/min]30.000
      Acceleration [m/s2]3
      Weight of machine [kg]
