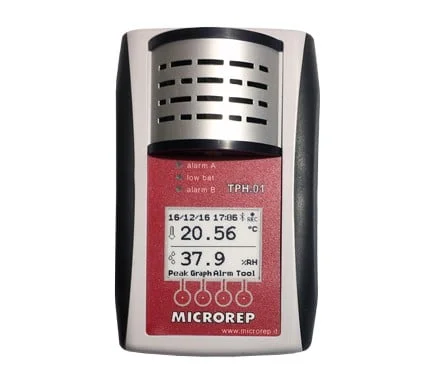

Echipament pentru monitorizare temperatura si umiditate - Microrep TPH 01
Temperature & humidity
The TPH.01 unit is capable of measuring and monitoring the temperature and humidity of the calibration room as well as any other mission critical environment, as required by the accreditation norms.
With a resolution of 0.01°C | 0.01°F and a top accuracy, the unit is suitable for high-end applications as well as for monitoring standard working conditions.

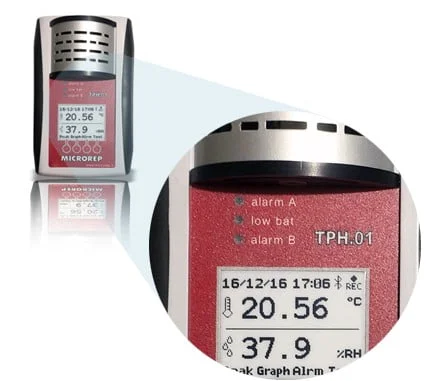

The unit is equipped with an high resolution display to show all relevant information.
Thanks to the built-in memory and battery, the data are collected 24h for approximately 1 year of uninterruptible readings.
The software allows real time reading and data manipulation with charts analisys.
Data logger
The TPH.01 unit is programmed via software to read data at a given frequency.
Thanks to the built-in memory and battery, the unit can work 24h, collecting temperature and humidity data even if not connected to the PC.
The large unit memory allows to store up to 500.000 readings.
When the unit is connected to the PC, data are syncronized in the software.

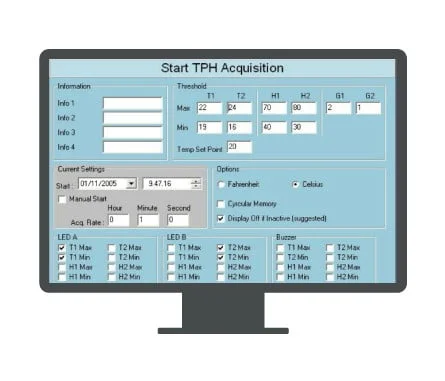

The software allows to program the unit, download and manipulate data (chart available).

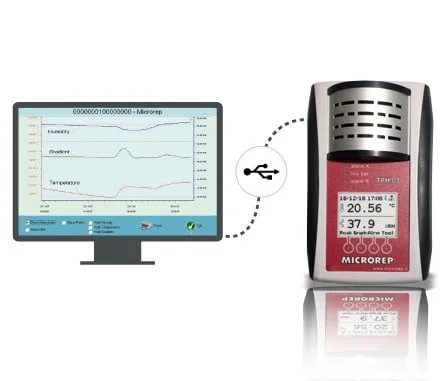

Software
When the unit is connected to the PC, the TPH.01 memory can be downloaded to the software.
All data are stored into the software database and can be used to study or show the environmental conditions history.
Data are visualized into tables or charts.
Automatic Alarm
The TPH.01 unit can be programmed to display an alarm when a specific environmental condition is exceeded.
It is possible to define alarms for the temperature, the humidity and the gradient (temperature drift).
For each allarm it is also possible to specify a pre-warning limit and a worning limit, as well.
Alarms can be visualized with a blinking led or a buzzer.
In case of alarm the PC can automatically send a message via e-mail.

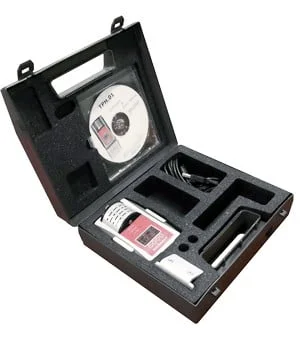

Fitted carrying case
The TPH.01 is supplied with a fitted carrying case to provide protection during delivery, storage and future movements.
Resolution
| temperature | 0.01°C | 0.01°F |
|---|---|
| humidity | 0.1% |
Accuracy
| temperature | 0.10°C | 0.18°F |
|---|---|
| humidity | 4% |
Range
| temperature | -10÷60°C | 15÷140°F |
|---|---|
| humidity | 0÷100% (non cond.) |
Data-logger reading frequency
Programmable form 1 to 60 minutes
Data-logger memory
500.000 continuous readings
Battery lifetime
AA batteries can typically last 1 year (less if allarm or display on)
Connectors and communication
BLE wireless technology
USB connector
Micro-SD card slot
