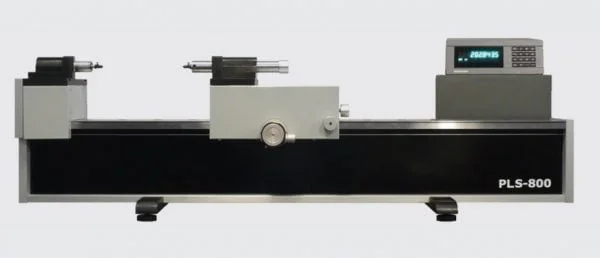

For setting instrument and length measurement. With an absolute travel of 800 mm | 1200 mm, the PLS is ideal for setting all comparative instruments such as bore gage, external micrometers, internal micrometer, calipers, etc as well as for length measurement at workshop level.
External MicrometerExternal micrometer setting and checking. | |

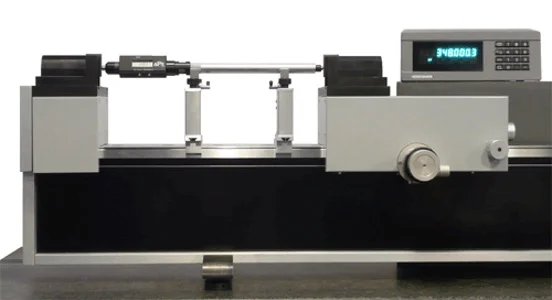

Internal MicrometerInternal micrometer setting and checking. | |

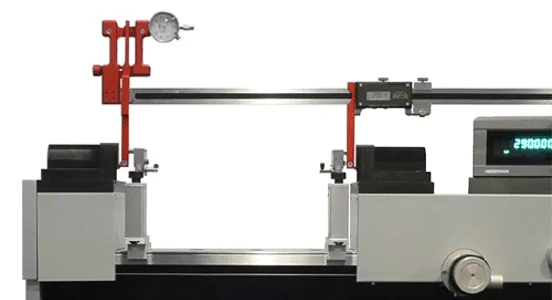

Inside CaliperInside caliper setting and checking. | |

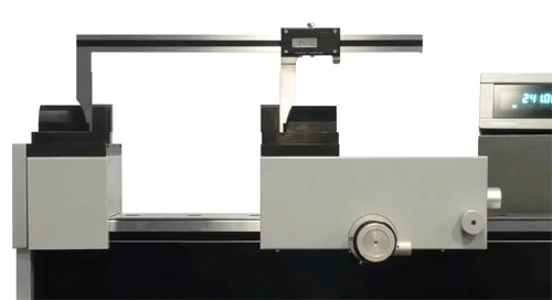

Outside CaliperOutside caliper setting and checking. | |

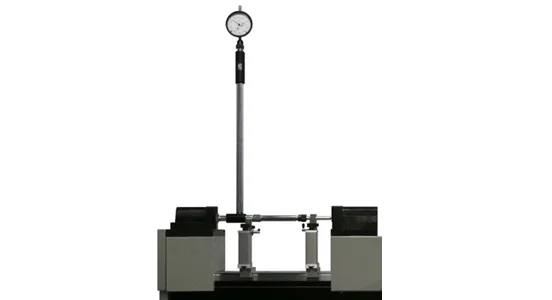

Bore gageBore gage setting and checking. | |

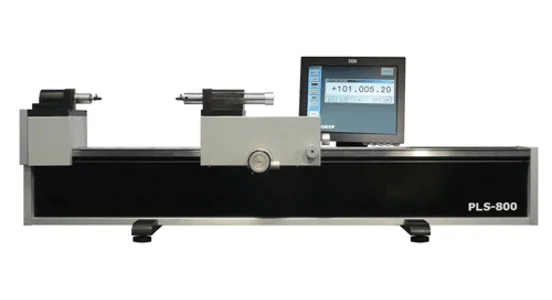

PLS 800 Computerized versionPLS 800 is also available with PC and software so to provide automatic preset for inside and outside measurement, as well as for providing a more reliable gage management system. |
Specs:
Equipped with Heidenhain reading scale with 0.1 µm resolution
Model | PLS 800 | PLS 1200 |
absolute travel | 820 mm | 1220 mm |
internal micrometer | 0 – 800 mm | 0 – 1200 mm |
external micrometer | 50 – 850 mm | 50 – 1250 mm |
external caliper | 50 – 850 mm | 50 – 1250 mm |
internal caliper | 0 – 800 mm | 0 – 1200 mm |
bore gage | 0 – 800 mm | 0 – 1200 mm |
For setting instrument and length measurement. With an absolute travel of 800 mm | 1200 mm, the PLS is ideal for setting all comparative instruments such as bore gage, external micrometers, internal micrometer, calipers, etc as well as for length measurement at workshop level.
External MicrometerExternal micrometer setting and checking. | |
Internal MicrometerInternal micrometer setting and checking. | |
Inside CaliperInside caliper setting and checking. | |
Outside CaliperOutside caliper setting and checking. | |
Bore gageBore gage setting and checking. | |
PLS 800 Computerized versionPLS 800 is also available with PC and software so to provide automatic preset for inside and outside measurement, as well as for providing a more reliable gage management system. |
Specs:
Equipped with Heidenhain reading scale with 0.1 µm resolution
Model | PLS 800 | PLS 1200 |
absolute travel | 820 mm | 1220 mm |
internal micrometer | 0 – 800 mm | 0 – 1200 mm |
external micrometer | 50 – 850 mm | 50 – 1250 mm |
external caliper | 50 – 850 mm | 50 – 1250 mm |
internal caliper | 0 – 800 mm | 0 – 1200 mm |
bore gage | 0 – 800 mm | 0 – 1200 mm |
Echipament pentru setare si presetare - Microrep PLS 800 / PLS 1200
