Masina de debitat cu plasma - Loyalmak Compact
General Specifications
Fast and Precise…

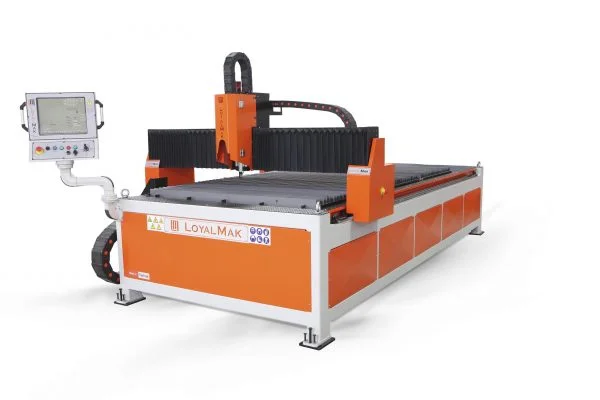

CompactCut is the space-saving and easy to relocate model which is driven by dual side AC servo motors, THC and 25mm helical linear guides and rack&pinion system to assure precise cutting with high accuracy.
Best Compact Design…
CompactCut with solid and stable Monobloc structure offers wide range of capabilities, such as HyPerformance Plasma, Hyspeed plasma and air plasma by Hypertherm. Compact model addresses to mid and small range workshops.
Standart Equipment
♦ Hypertherm Edge Connect CNC
♦ Hypertherm Edge Connect CNC
♦ Hypertherm Plasma Power Source
♦ 19,5“ Touch Screen
♦ Torch Collision Protection System
♦ Automatic Torch Height Control
♦ Axis positioning accuracy ± 0,02 mm
♦ Axis positioning seed max. 20 m/min.
♦ Remote assistance
♦ Laser pointer for plate alignment
♦ Automatic dust and fume extraction system
♦ Pause / resume last part (Eg. electricty cut)
♦ Monobloc Design
Optional Equipment
♦ Plasma Power Sources
– HPRXD Series
> HPR400XD
> HPR800XD
– XPR Series
> XPR170 – choice of CORE / VWI / OPTIMIX Automatic Gas consoles
> XPR300 – choice of CORE / VWI / OPTIMIX Automatic Gas consoles
– MAXPRO200
– POWERMAX Series – 45XP / 65 / 85 / 105 / 125
♦ Automatic Nesting Software
– Hypertherm Pronest LT Essential
– Hypertherm Pronest LT Unlimited
– Hypertherm Pronest Advance
♦ Tube Cutting ø30x140mm
♦ Manual Bevel Cutting (available with XPR and HPRXD series)
♦ True Hole Technology (available with XPR and HPRXD series)
♦ LoyalMak Jet Filter
♦ Lateral Drawers for slag collection system
