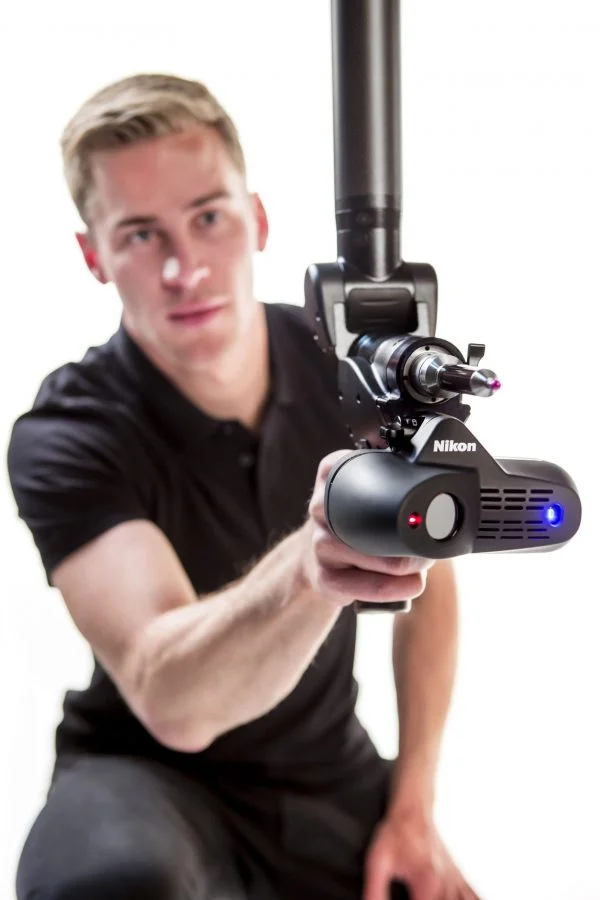

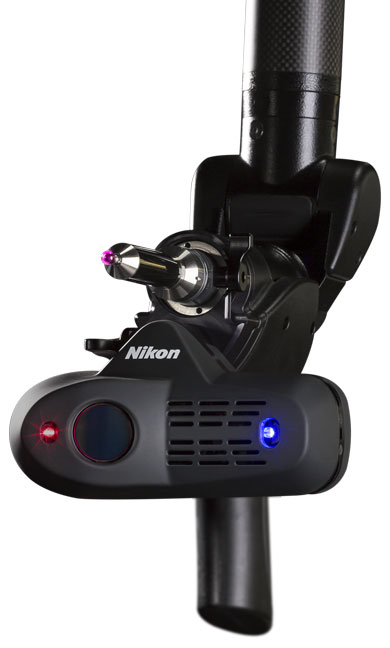

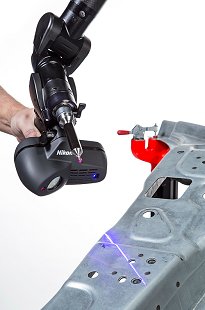

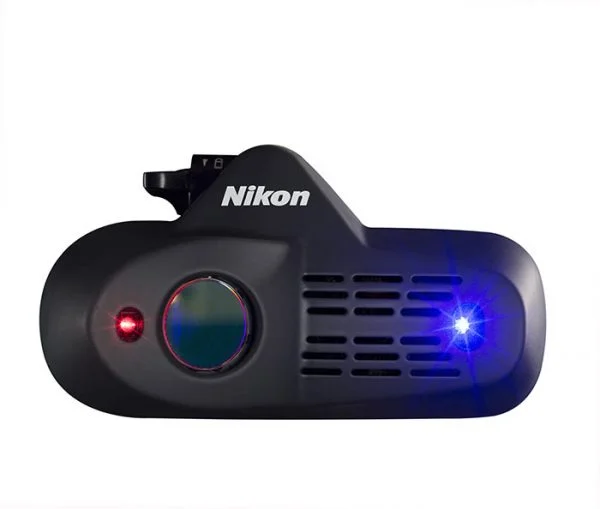

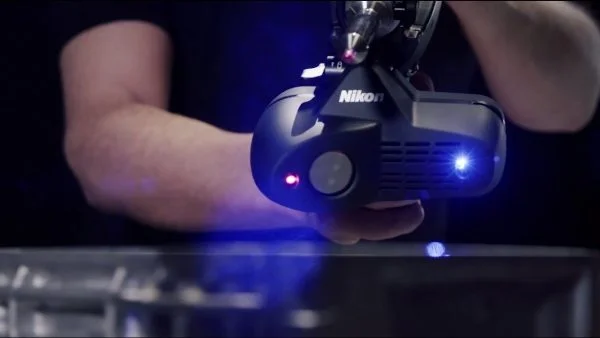

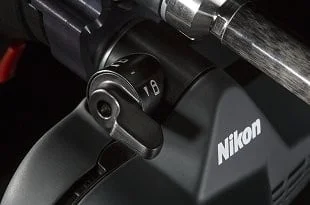

      Nikon ModelMaker H120 – Scanare 3D rapida si precisa

      ModelMaker H120 – Ultra-fast high-definition 3D scanning

      More than two decades since the inception of the ModelMaker product line, the cutting-edge ModelMaker H120 firmly pushes the ever-exacting boundaries of handheld laser scanning. Incorporating blue laser technology, ultra-fast frame rate, specially developed Nikon optics and the ability to measure the most challenging materials this represents the next generation of portable laser scanning. The H120 makes no compromises in addressing the market needs by efficiently delivering the most detailed and accurate data in a fraction of the time of competing technologies.

      Key Benefits

      • EXTREMELY LOW NOISE DATA – Nikon lens combined with blue laser technology
      • UNEQUALLED PRECISION  – Scanner accuracy of 7 microns
      • UNCOMPROMISING PERFORMANCE  – Measures at over 450 stripes every second on all materials
      • ENHANCED USER EXPERIENCE – Full Field-of-View indicator for precise scanning
      • MEASURE THE MOST CHALLENGING MATERIALS – Real-time optimization of the laser for every single measured point
      • OPTIMIZED FOR ALL APPLICATIONS – Designed for use under all shop floor or field conditions

      Applications

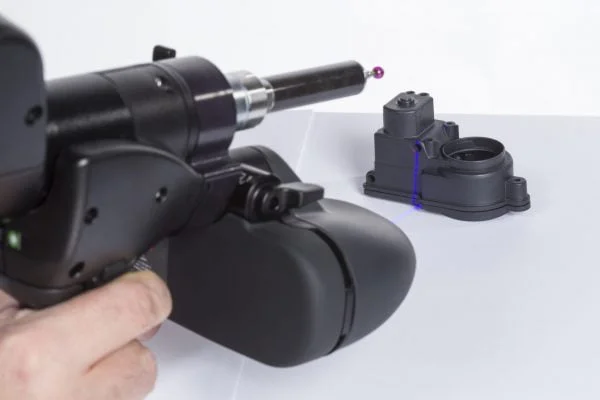

      • Fast & accurate multi-sensor 3D inspection
      • Part-to-CAD inspection: First article inspection against CAD model
      • Inspection of geometric features

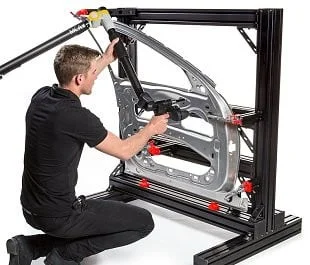

      • Gap-and-flush inspection
      • Reverse engineering: from concept studio clay to class A surfaces
      • Digitizing for additive manufacturing

      Benefits & features

      Uncompromising performance

      By combining a frame rate of 450 Hz, a stripe width of 120 mm and a resolution of 35 μm, users benefit from high productivity and detailed measurements with a single sensor.

      Without relying on interpolation techniques to artificially boost data density, the ModelMaker H120 guarantees fast data collection over a large area without compromising on small details – offering great flexibility in a single solution even when cycle time is critical, no matter the type of parts measured.

      Furthermore, the superior accuracy of the ModelMaker H120 ensures it stands far apart from similar technology, further pushing the traditionally accepted boundaries of handheld laser scanners.

      Measure the most challenging materials

      The 4th generation of Nikon’s patented Enhanced Sensor Performance (ESP4) provides faster-then-ever real-time dynamic adjustment of the laser intensity for every point.

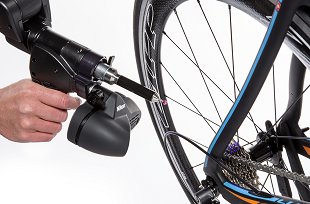

      Users can confidently scan across parts with strong colour transitions and varying reflectivity from any direction with no loss in scanner speed and no need for prior part preparation.

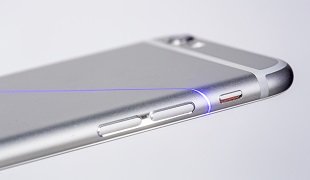

      ModelMaker scanners also benefit from intelligent reflection control which allows users to measure very shiny or polished materials while unwanted reflections are filtered out.

      Immediate productivity

      Simple system set-up, immediate boot-up and no need for scanner warm-up combined with the structural rigidity, thermal stability and absolute encoder technology of the MCAx arms allows users to switch on and start confidently collecting accurate data straightaway.

      Extremely low noise data

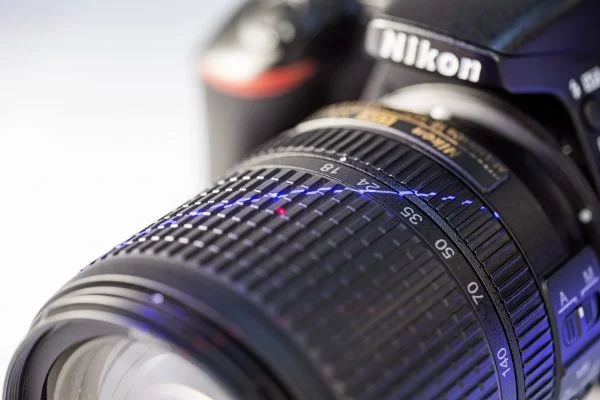

      By combining specially-developed Nikon optics and low-speckle blue laser technology, the ModelMaker H120 achieves super low-noise measurements and can cleanly resolve details such as sharp edges and even surface scratches and abrasions which other scanners simply cannot.

      Specifications
      Accuracy (1σ) 1,27 µm
      Stripe width120 mm
      Measuring range50 mm
      Stand-off80 mm
      Min. point resolution35 µm
      Max. frame rate450 Hz
      Max. points per stripe2,000
      Laser power adjustmentESP 4 (real-time per point)
      Warm up time0 sec
      Weight (approx.)500 g
      Laser powerClass 2, 450 nm
      Field of view indicatorFull FoV
      Arm attachmentIntegrated

      1 Typical values are 30% better than published values.
      2 Laser scanner Accuracy is determined by scanning a plane from various directions, each time using the entire scanner field of view. The result is the maximum 1σ deviation of the scan data to fitted plane features.



       Scan rateProductivityResolution Accuracy
      H120 ***** ***** **** *****
      MMDx50 ** ** **** ****
      MMDx100 ** *** ** **
      MMDx200 ** **** * *



       H120
      MCAx20+28 µm
      MCAx25+32 µm
      MCAx30+38 µm
      MCAx35+48 µm
      MCAx40+60 µm
      MCAx45+80 µm
      MCAx2036 µm
      MCAx2540 µm
      MCAx3052 µm
      MCAx3570 µm
      MCAx4070 µm
      MCAx45122 µm

      Описание

      ModelMaker H120 – Ultra-fast high-definition 3D scanning

      More than two decades since the inception of the ModelMaker product line, the cutting-edge ModelMaker H120 firmly pushes the ever-exacting boundaries of handheld laser scanning. Incorporating blue laser technology, ultra-fast frame rate, specially developed Nikon optics and the ability to measure the most challenging materials this represents the next generation of portable laser scanning. The H120 makes no compromises in addressing the market needs by efficiently delivering the most detailed and accurate data in a fraction of the time of competing technologies.

      Key Benefits

      • EXTREMELY LOW NOISE DATA – Nikon lens combined with blue laser technology
      • UNEQUALLED PRECISION  – Scanner accuracy of 7 microns
      • UNCOMPROMISING PERFORMANCE  – Measures at over 450 stripes every second on all materials
      • ENHANCED USER EXPERIENCE – Full Field-of-View indicator for precise scanning
      • MEASURE THE MOST CHALLENGING MATERIALS – Real-time optimization of the laser for every single measured point
      • OPTIMIZED FOR ALL APPLICATIONS – Designed for use under all shop floor or field conditions

      Applications

      • Fast & accurate multi-sensor 3D inspection
      • Part-to-CAD inspection: First article inspection against CAD model
      • Inspection of geometric features
      • Gap-and-flush inspection
      • Reverse engineering: from concept studio clay to class A surfaces
      • Digitizing for additive manufacturing

      Benefits & features

      Uncompromising performance

      By combining a frame rate of 450 Hz, a stripe width of 120 mm and a resolution of 35 μm, users benefit from high productivity and detailed measurements with a single sensor.

      Without relying on interpolation techniques to artificially boost data density, the ModelMaker H120 guarantees fast data collection over a large area without compromising on small details – offering great flexibility in a single solution even when cycle time is critical, no matter the type of parts measured.

      Furthermore, the superior accuracy of the ModelMaker H120 ensures it stands far apart from similar technology, further pushing the traditionally accepted boundaries of handheld laser scanners.

      Measure the most challenging materials

      The 4th generation of Nikon’s patented Enhanced Sensor Performance (ESP4) provides faster-then-ever real-time dynamic adjustment of the laser intensity for every point.

      Users can confidently scan across parts with strong colour transitions and varying reflectivity from any direction with no loss in scanner speed and no need for prior part preparation.

      ModelMaker scanners also benefit from intelligent reflection control which allows users to measure very shiny or polished materials while unwanted reflections are filtered out.

      Immediate productivity

      Simple system set-up, immediate boot-up and no need for scanner warm-up combined with the structural rigidity, thermal stability and absolute encoder technology of the MCAx arms allows users to switch on and start confidently collecting accurate data straightaway.

      Extremely low noise data

      By combining specially-developed Nikon optics and low-speckle blue laser technology, the ModelMaker H120 achieves super low-noise measurements and can cleanly resolve details such as sharp edges and even surface scratches and abrasions which other scanners simply cannot.

      Specifications
      Accuracy (1σ) 1,27 µm
      Stripe width120 mm
      Measuring range50 mm
      Stand-off80 mm
      Min. point resolution35 µm
      Max. frame rate450 Hz
      Max. points per stripe2,000
      Laser power adjustmentESP 4 (real-time per point)
      Warm up time0 sec
      Weight (approx.)500 g
      Laser powerClass 2, 450 nm
      Field of view indicatorFull FoV
      Arm attachmentIntegrated

      1 Typical values are 30% better than published values.
      2 Laser scanner Accuracy is determined by scanning a plane from various directions, each time using the entire scanner field of view. The result is the maximum 1σ deviation of the scan data to fitted plane features.



       Scan rateProductivityResolution Accuracy
      H120 ***** ***** **** *****
      MMDx50 ** ** **** ****
      MMDx100 ** *** ** **
      MMDx200 ** **** * *



       H120
      MCAx20+28 µm
      MCAx25+32 µm
      MCAx30+38 µm
      MCAx35+48 µm
      MCAx40+60 µm
      MCAx45+80 µm
      MCAx2036 µm
      MCAx2540 µm
      MCAx3052 µm
      MCAx3570 µm
      MCAx4070 µm
      MCAx45122 µm
