Sistem de filtrare HFiltration PULSATRON H HORIZONTAL

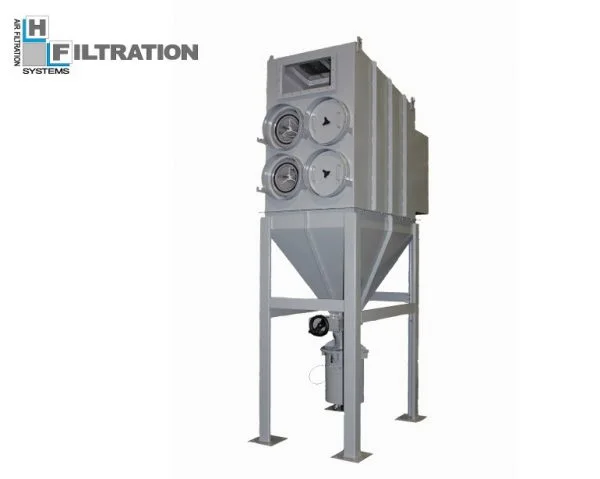

The PULSATRON H cartridge filter is a Pulse-Jet type self-cleaning modular dust remover with pneumatic cartridge cleaning via a puff of counter-current compressed air.
The pleated filtering elements used are extremely highly efficient and abate 99.95% of 0.5µm particles, easily ensuring emissions less than 1mg/Nm3.

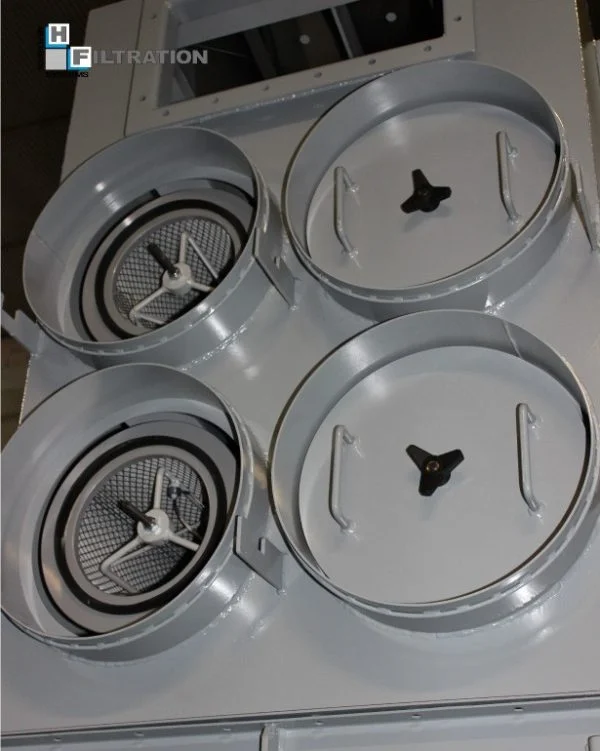

The special horizontal cartridge configuration allows there to be a descending air flow, making the unit particularly suited to treating very light fine dust. Horizontal cartridge filter maintenance is done from the front and this makes replacing the cartridges extremely quick and simple.
Cartridge cleaning is controlled by a sequencer panel that starts the washing cycle; this happens when the decrease in dust load through the filter reaches a preset value. Cleaning ends when the decrease in dust load falls below a second threshold: all the washing parameters (Δp of cycle start/start, Δp of clogged filter alarm, duration and frequency of the puff of compressed air) are adjustable based on the operating conditions.
Advantages
- High filtration efficiency and low output emissions (≤ 1 mg/Nm³)
- Bag-in Bag-out system
- Fast, simple filtering cartridge maintenance
- Extremely low installation, use and maintenance costs
- Compact units that require minimum installation space
- Extensive filtering cartridge duration
- Safe, easy inspection of the entire cartridge filter
