Sistem de marcare cu laser Lasit Galaxy
Product Description
Galaxy is a laser marking and engraving system designed for the highest productivity but also for those who have to mark extremely big and complex parts. The structure of the system is entirely made of welded and milled steel. These high quality components assure a great stability over time and thus an extreme precision during marking process, even when machine may be moved or re-located or impacted accidentally. The large marking area depends on the structure of the X, Y and Z axes. This structure is designed in order to reduce significantly the machine footprint, allowing at the same time for marking the widest range of parts. The welded steel structure has a working table made of hard anodized aluminum with pre-drilled holes (step 50) for fixturing parts quickly. Included in the system is a PC, monitor and both FlyCAD and FlyControl software packages with free upgrades.

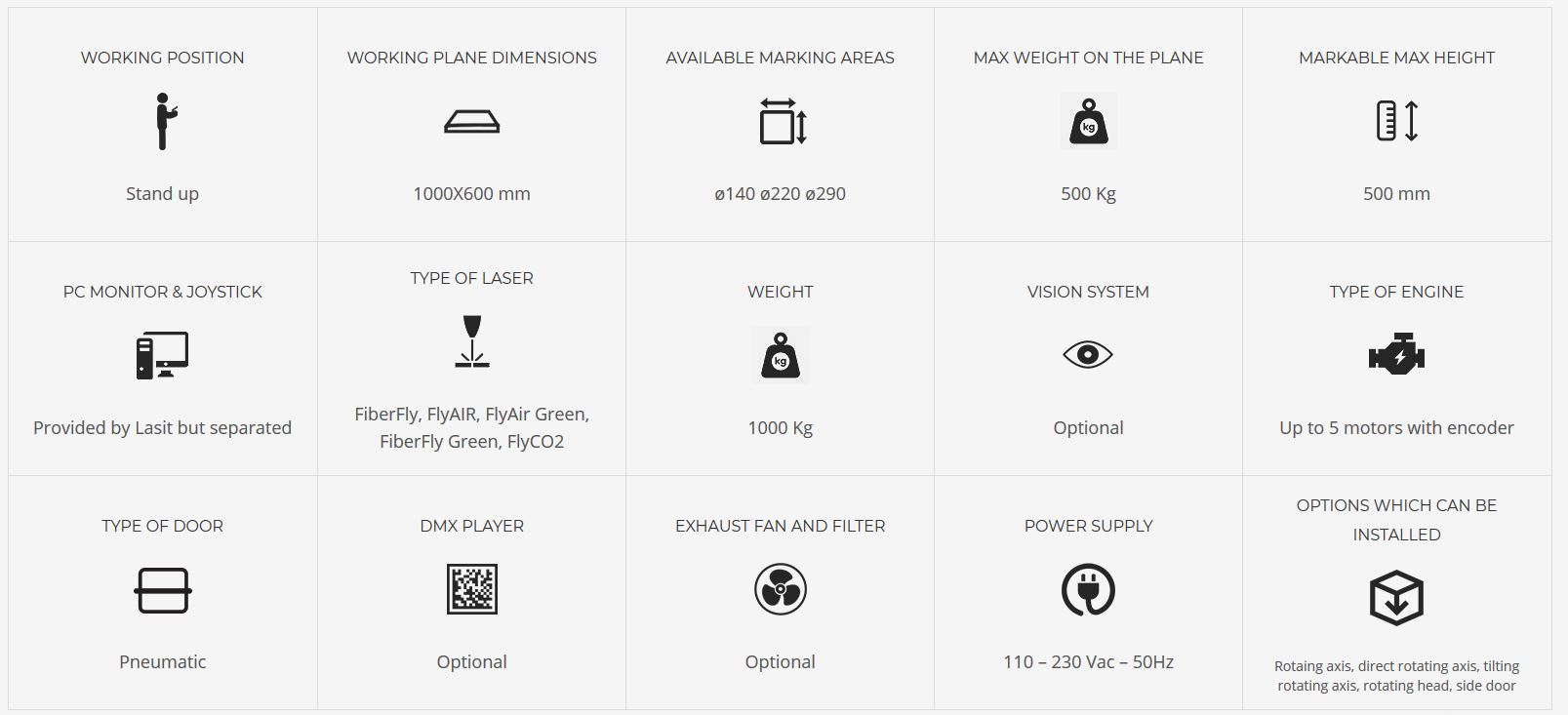

- Working area 1000x600mm
- X axis with a stroke of 800mm
- Y axis with a stroke of 500mm
- Maximum part height 500mm
- Joystick and SmartFocus for automatic focusing
- Electric and programmable rotatory axis
