The MicroMark GN is a desktop laser engraving machine that provides the most economical solution that meets a wide range of production needs. Vertical openings on all three sides provide easy access with a pass through option when needed. Long parts that won’t fit in the cabinet are easily marked with 3 sides open. The robust structure has a working table made of hard anodized aluminum with pre-drilled holes (step 50) for fixturing parts quickly. Included in the system is a PC, monitor and both FlyCAD and FlyControl software packages with free upgrades.

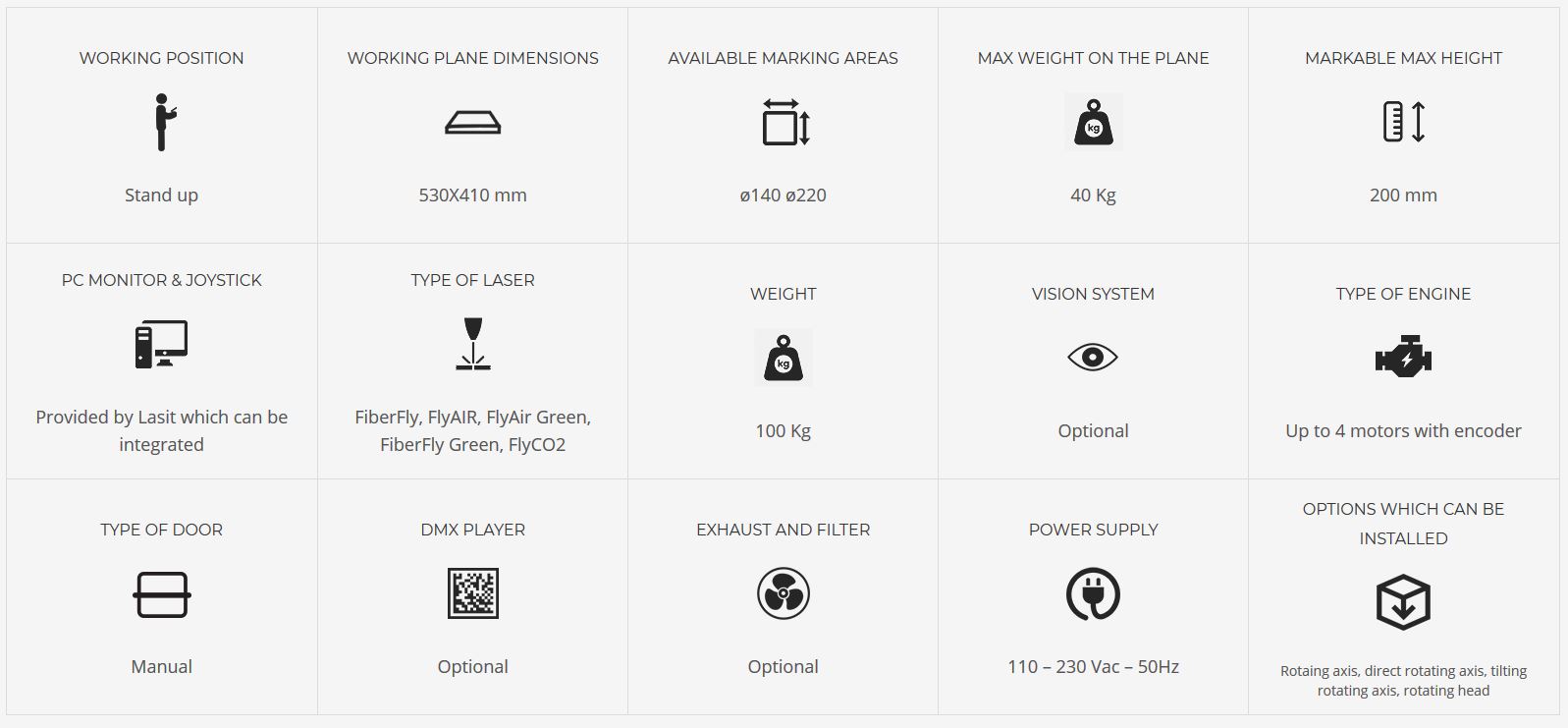

Working position | Stand up, Workbench |
---|---|
Working plane dimensions | 530 x 410 |
Max weight on the plane | 40Kg |
Markable max height (ø 140mm) | 200mm |
Available marking areas | ø140 and ø220 |
Options which can be installed | Rotaing axis, direct rotating axis, tilting rotating axis, rotating head, drawer |
Type of laser | FiberFly, FlyAIR, FlyAir Green, FiberFly Green, FlyCO2 |
Vision system | Optional but not recommended |
Type of engine | Up to 2 motors with encoder |
Joystick | A handle for control Z axis |
Type of door | Manual or pneumatic |
Exhaust fan and filter | Supplied by Lasit which can be integrated |
Pc and monitor | Provided by Lasit but separated |
DMX player | Optional |
Weight | 100Kg |
Power supply | 110 – 230 Vac – 50Hz |
The MicroMark GN is a desktop laser engraving machine that provides the most economical solution that meets a wide range of production needs. Vertical openings on all three sides provide easy access with a pass through option when needed. Long parts that won’t fit in the cabinet are easily marked with 3 sides open. The robust structure has a working table made of hard anodized aluminum with pre-drilled holes (step 50) for fixturing parts quickly. Included in the system is a PC, monitor and both FlyCAD and FlyControl software packages with free upgrades.
Working position | Stand up, Workbench |
---|---|
Working plane dimensions | 530 x 410 |
Max weight on the plane | 40Kg |
Markable max height (ø 140mm) | 200mm |
Available marking areas | ø140 and ø220 |
Options which can be installed | Rotaing axis, direct rotating axis, tilting rotating axis, rotating head, drawer |
Type of laser | FiberFly, FlyAIR, FlyAir Green, FiberFly Green, FlyCO2 |
Vision system | Optional but not recommended |
Type of engine | Up to 2 motors with encoder |
Joystick | A handle for control Z axis |
Type of door | Manual or pneumatic |
Exhaust fan and filter | Supplied by Lasit which can be integrated |
Pc and monitor | Provided by Lasit but separated |
DMX player | Optional |
Weight | 100Kg |
Power supply | 110 – 230 Vac – 50Hz |
