The MiniMark is a class IV desktop laser engraving machine which offers easy high speed laser marking with the minimal footprint. It is an extremely flexible and convenient system because it can mark and engrave parts with no space constraints thanks to its open structure.
The MiniMark provides the most economical solution that meets a wide range of production needs. It requires protective spectacles while working.
The robust structure has a working table made of hard anodized aluminum with pre-drilled holes (step 50) for fixturing parts quickly. Included in the system is a PC, monitor and both FlyCAD and FlyControl software packages with free upgrades.

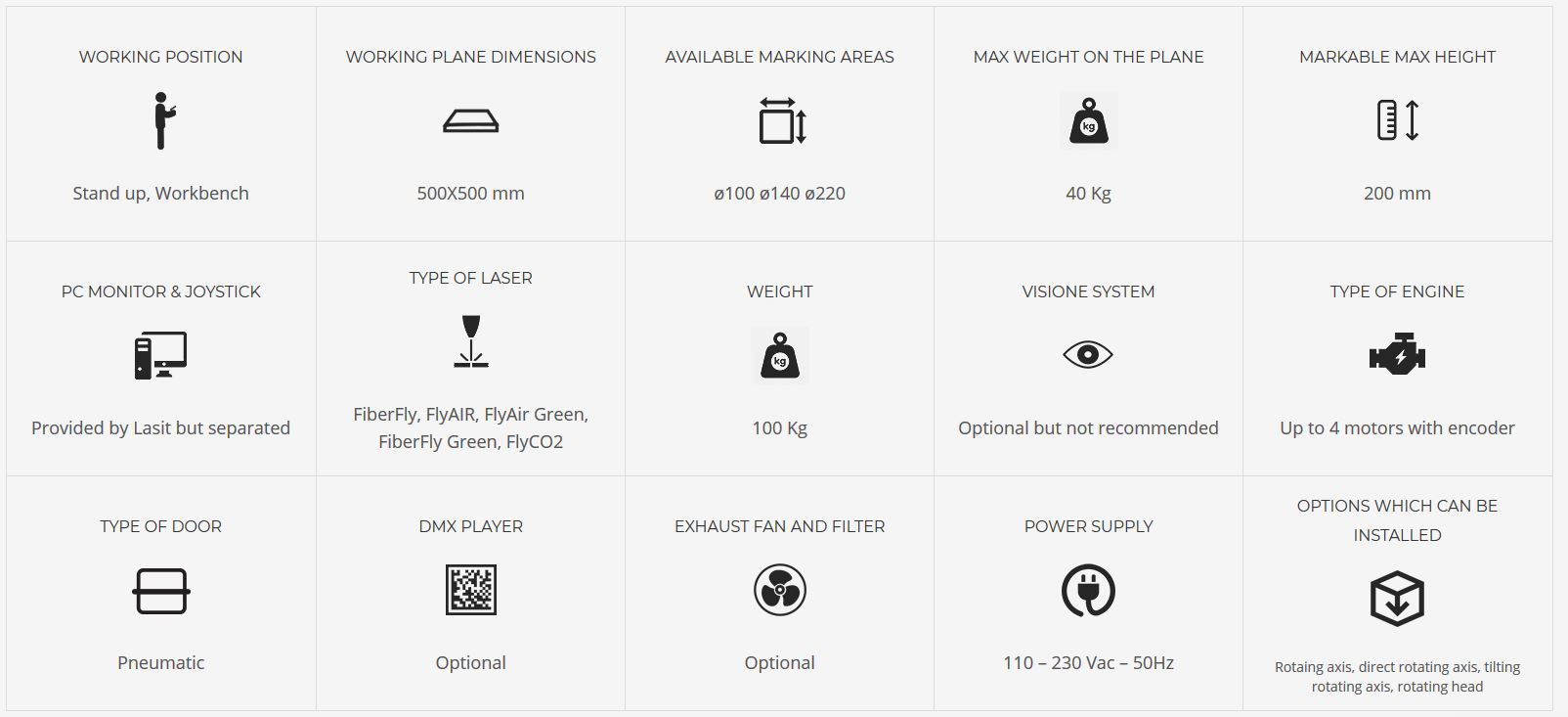

Working position | Stand up, Workbench |
---|---|
Working plane dimensions | 500 x 500 |
Max weight on the plane | 40Kg |
Markable max height (ø 140mm) | 200mm |
Available marking areas | ø100, ø140, ø220 |
Options which can be installed | Rotaing axis, direct rotating axis, tilting rotating axis, rotating head, drawer |
Type of laser | FiberFly, FlyAIR, FlyAir Green, FiberFly Green, FlyCO2 |
Vision system | Optional but not recommended |
Type of engine | Up to 2 motors with encoder |
Joystick | A handle for control Z axis |
Exhaust fan and filter | Supplied by Lasit which can be integrated |
Pc and monitor | Provided by Lasit but separated |
DMX player | Optional |
Weight | 100Kg |
Power supply | 110 – 230 Vac – 50Hz |
