Strung CNC - Microcut 76HTY/76HTLY

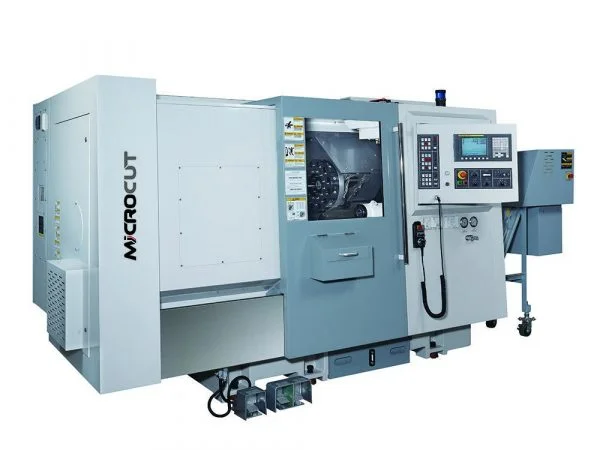

The slant-bed lathe, 76HTY/76HTLY series features integrated Y axis to bring performance and productivity. The Y axis and C axis provide more flexibility and multiple operations when machining complex workpiece. Equipped with 76mm bar capacity with powerful 45kW (30 min. rate), high power spindle motor with high torque output to provide capability with max cutting diameter of 450mm and max cutting length of 750 m(HTY) /1250mm((HTLY). The slant-bed lathe series is ideal for various industrial applications.
Specification:
| ITEM | UNIT | 76HTY/76HTLY |
| Swing over bed | mm | 700 |
| Swing over cross slide | mm | 460 |
| Max. cutting dia. (with turret) | mm | 265/450 |
| Max. cutting length (with turret) | mm | 750 / 1250 |
| X axis travel | mm | 275(Axial turret) |
| Y axis travel | mm | 110(±55) |
| Z axis travel | mm | 750 / 1250 |
| Slant bed degree | degree | 45 |
| Spindle speed | rpm | 3000 |
| Bar capacity | mm | 76(A2-8) |
| Chuck size (Option) | mm(inch) | 250(10″) |
| Spindle main power | kW | Fagor:17/25 ; Fanuc:15/18.5 ; Siemens:30/45 |
| Rapid feed (X/Y/Z) | m/min | 24 / 7.5 / 24 |
| Machine weight | kg | 7600(HTY) ; 8600(HTLY) |
