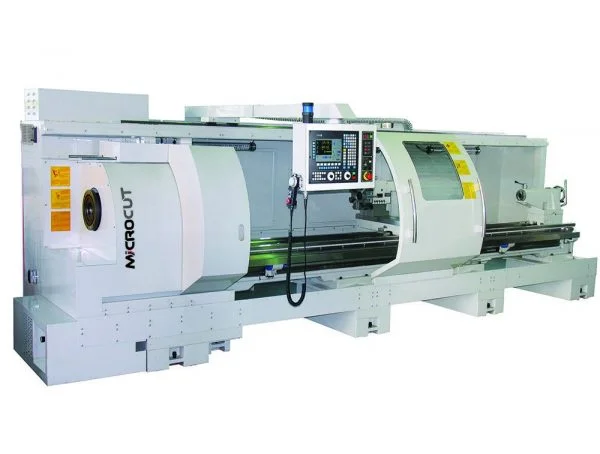

      Strung CNC - Microcut BNC-2800A

      Powerful geared head stock with 2-step automatic transmission provides high torque output. To prevent deformation from heavy duty cutting, One-piece Meehanite licensed casting iron bed provides for rigidity and stability. BNC-2800A provides large working capacity: turning diameter 710mm, turning length 1M~6M.

      Specification:

       ITEMUNITBNC-2800A
       Swing in gapmm970
       Swing over bedmm710
       Swing over cross slidemm370
       Max. cutting length (with turret)mm1000/2000/3000/4000/5000/6000
       X axis travelmm425
       Z axis travelmm1150/2150/3150/4150/5100/6100
       Rapid feed (X & Z)m/minX: 10 , Z: 12
       Spindle boremm153
       Spindle speedrpm0-1480 (153mm bore)
       Spindle motorkWFagor: 15/22;  Fanuc: 22/26
       Machine weightkg8300/9300/10300/11300/12300/13300

      Standard accessories:

      • A2-11 Ø153mm spindle bore
      • Coolant through spindle system
      • Tailstock
      • Heat exchanger

      Optional accessories:

      • 8 or 12 stations hydraulic turret, regular type
      • 8-station VDI-50 turret
      • Quick change tool post
      • C axis
      • Chip conveyor(5 bar coolant tank/ wash down system/oil skimmer)
      • Roller steady rest (50~300mm/250~380mm)
      • Follow rest 20-200mm
      • Electric 4 way tool post
      • Cutting insert holder
      • Rear chuck
      • Manual 3-jaw chuck (16″)
      • Manual 4-jaw chuck (26″)
      • Hydraulic 3-jaw chuck (12″)
