Strunguri CNC - Muratec Seria MD
A new concept in process integration, flexible parts manufacturing and line planning.
The new MD series is designed for compact line operation, flexibility in manufacturing, versatility and easy set-up change.
Machine Features
-
Process integration
-
The MD Series can be linked to the MW/MS Series chuckers to create a high speed, flexible integrated machining line
-
Compact design, Easy set-up change
-
Five-face machining without re-chucking. With the C-axis spindle and the cross and face milling heads, the front and four sides of a workpiece can be machined
Main Specifications
 |
|
|
|
|
|
||||
|
MD60 |
|

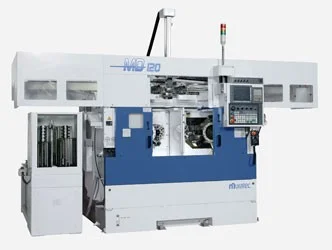

MD120 |
|
|---|---|---|---|---|
|
||||
|
Chuck size |
|
STD: 165 mm (6″) |
||
|
||||
|
Number of spindle |
|
1 |
|
2 |
|
||||
|
Number of tools |
|
10 |
|
10 x 2 |
|
||||
|
Spindle nose |
|
JIS A2-5 |
||
|
||||
|
Max. Spindle speed |
|
4500 rpm |
||
|
||||
|
Spindle AC motor |
|
STD : 7.5kW / 30 min
|
|
STD : 7.5kW / 30 min x 2 |
|
||||
|
Live tool motor |
|
2.5 kW, 8 N / continuous |
|
2.5 kW, 8 N / continuous x 2 |
|
||||
|
Live tool speed |
|
4000 rpm |
||
|
||||
|
Maximum live tool diameter |
|
Milling – Dia. 16 mm Tapping – M10 |
||
|
||||
|
Gross weight with loader |
|
2400 kg |
|
5000 kg |
|
|
|
|
|
|
||||
|
MD100 |
|

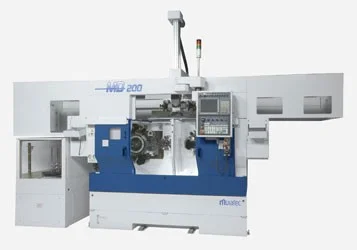

MD200 |
|
|---|---|---|---|---|
|
||||
|
Chuck size |
|
254 mm (10″) |
||
|
||||
|
Number of spindle |
|
1 |
|
2 |
|
||||
|
Number of tools |
|
10 |
|
10 x 2 |
|
||||
|
Spindle nose |
|
JIS A2-6 |
||
|
||||
|
Max. Spindle speed |
|
2000 rpm |
||
|
||||
|
Spindle AC motor |
|
STD : 11 kW / 30 min
|
|
STD : 11 kW / 30 min x 2 |
|
||||
|
Live tool motor |
|
4 kW, 22 N / continuous |
|
4 kW, 22 N / continuous x 2 |
|
||||
|
Live tool speed |
|
3000 rpm |
||
|
||||
|
Maximum live tool diameter |
|
Milling – Dia. 16 mm Tapping – M16 |
||
|
||||
|
Gross weight with loader |
|
4200 kg |
|
7400 kg |
