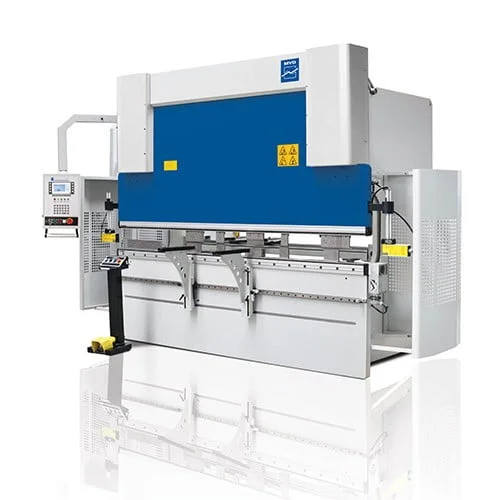

      CNC HYDRAULIC PRESS BRAKE - MVD B Series

      B SERIES

      Great press brake to do excellence bendings and flawless jobs.
      Body and upper beam made of steel constructions, has been designed according minimum stretch and optimum resistance criteria.

      Standard Features

      • Y1,Y2, X CNC 3 Axes
      • 260 mm Stroke, 410 mm Throat Depth
      • ESA S630 CNC Control Unit
      • ±0,03 accuracy SERVO motorized back gauge X=750 mm
      • Quick clamp Promecam punch tool holder
      • Sliding front sheet support arms
      • MVD special narrow bottom table (European type)
      • GIVI optic linear scales
      • Standard punch tools (H: 67, 85°, R:08)
      • Standard die tools (60×60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60)
      • LED illumination on RAM

      Optional Features

      • X to 2-4-6-8 axis back gauge options
      • Wide bottom table for Multi Vee dies
      • Anti-deflection crowning with original Wila wedges
      • AKAS or DSP front laser safety systems
      • Additional back gauge fingers
      • Front laser safety

      Description

      B SERIES

      Great press brake to do excellence bendings and flawless jobs.
      Body and upper beam made of steel constructions, has been designed according minimum stretch and optimum resistance criteria.

      Standard Features

      • Y1,Y2, X CNC 3 Axes
      • 260 mm Stroke, 410 mm Throat Depth
      • ESA S630 CNC Control Unit
      • ±0,03 accuracy SERVO motorized back gauge X=750 mm
      • Quick clamp Promecam punch tool holder
      • Sliding front sheet support arms
      • MVD special narrow bottom table (European type)
      • GIVI optic linear scales
      • Standard punch tools (H: 67, 85°, R:08)
      • Standard die tools (60×60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60)
      • LED illumination on RAM

      Optional Features

      • X to 2-4-6-8 axis back gauge options
      • Wide bottom table for Multi Vee dies
      • Anti-deflection crowning with original Wila wedges
      • AKAS or DSP front laser safety systems
      • Additional back gauge fingers
      • Front laser safety
