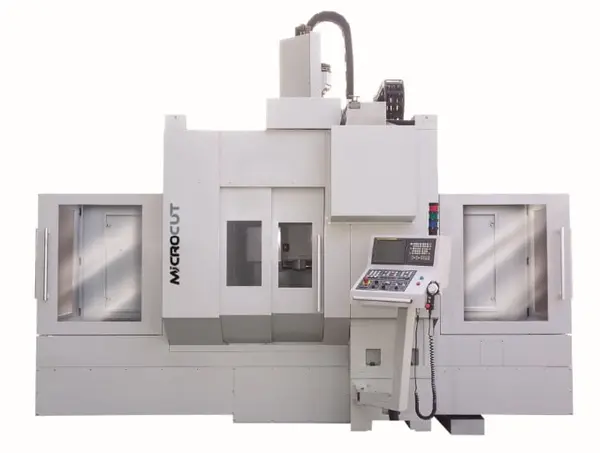

Vertical machining center - Microcut TT-40
The TT-40 Double Table vertical machining center designed for high productivity with in-line high torque spindle motor, speeds 12000rpm or 15000rpm. Roller linear Guideways gives high-speed and high precision. Unload and load one table while the other table setup is at working zone. A new concept of new twin table system provides extremely high volume production.
Specification:
| ITEM | UNIT | TT-40 | ||||
| Table size | mm | 1000 x 1100 (twin table) | ||||
| Max. table load | kg | 1000 | ||||
| X axis travel / U axis travel | mm | 2150 / 2190 | ||||
| Y axis travel | mm | 1100 | ||||
| Z axis travel | mm | 750 | ||||
| Spindle taper | ISO | ISO 40 | ||||
| Spindle speed | rpm | 12000/15000 | ||||
| Motor output | kW | 1 1/ 15 | ||||
| X/Y/Z Rapid feed | m/min | 40 | ||||
| X/Y/Z Cutting feed rate | m/min | 1 0 | ||||
| ATC arm type | Tool | 24 / 32 | ||||
| Machine weight | kg | 18000 | ||||
Standard accessories:
|
|
|
Optional accessories:
|
|
|
|
|
|
|
|
