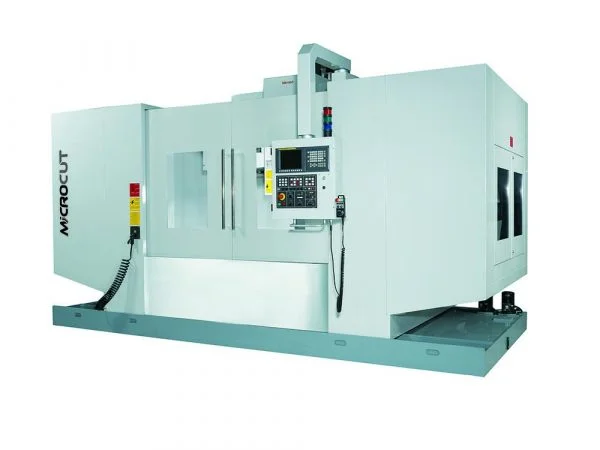

Centre de prelucrat vertical - Microcut VMC-2100
Super high loading capacity. The vertical machining center, VMC-2100 provides enlarged X/Y/Z travels 2100/900/850 mm based on a machine weight of 22500 kg. The sturdy, cast-iron C-frame designed with four Y-axis Guideways to ensure maximum rigidity and to provide the basis for efficient milling performance. 4th axis preparation is optional.
Specification:
| ITEM | UNIT | VMC-2100 | |
| Table size | mm | 2400 x 900 | |
| Max. table load | kg | 2500 | |
| X axis travel | mm | 2100 | |
| Y axis travel | mm | 900 | |
| Z axis travel | mm | 850 | |
| Spindle taper | ISO | ISO 40 / ISO 50 | |
| Spindle speed (std / opt) | rpm | 10000 (ISO 40) | 6000 (ISO 50) |
| Motor output | kW | Fagor：15/22 Fanuc：15/18.5 Siemens：15/22.5 Heidenhain：15/25 | Fagor：18.5/26 Fanuc：18.5/22 Siemens：18.5/27.75 Heidenhain：20/30 |
| X/Y/Z Rapid feed | m/min | 20/20/18 | |
| ATC | tool | 40 (ISO 40) / 32 (ISO 50) Arm type | |
| Machine weight | kg | 22500 | |
Standard accessories:
| ISO40 |
|
|
|
|
|
| ISO50 |
|
|
|
|
|
|
Optional accessories:
| ISO40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ISO50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
