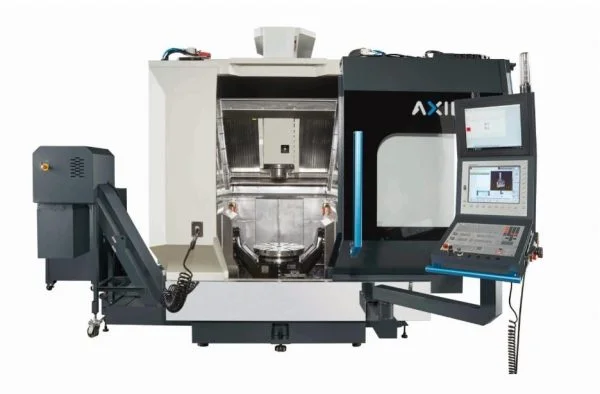

      5-Axis Vertical Machining Center - AXILE G6 COMPACT

      Compact design for those companies where space requirement is a must and the maximum magazine capacity of 60 tools is not a limitation. Good choice for die & mold, aerospace and general subcontractors with prototypes or very small batch production.



      Features

      • The tool management is then done at the back of the machine.
      • The access of the ATC ARM is done behind the working area
      • The working area becomes symmetric and simpler.

      Description

      Compact design for those companies where space requirement is a must and the maximum magazine capacity of 60 tools is not a limitation. Good choice for die & mold, aerospace and general subcontractors with prototypes or very small batch production.



      Features

      • The tool management is then done at the back of the machine.
      • The access of the ATC ARM is done behind the working area
      • The working area becomes symmetric and simpler.
      View more See less

      Do you have more questions?

      You can request an offer

      5-Axis Vertical Machining Center - AXILE G6 COMPACT

      Request offer

      Funding

      Financing solutions for the purchase of new equipment, through BCR Leasing or Grenke.

      See Financing Methods

      Specifications

      Table & Workpiece

      Table: Ø600 mm

      Table loading: 600 kg

      Linear Axes

      X/Y/Z axis: 650/850/500 mm

      Feed rate: 36 m/min

      Rotary Axes

      A swiveling: +/- 120 deg

      C rotary: 360 deg

      A max speed: 100 rpm

      C max speed: 200 rpm

      Spindle

      Spindle speed: 20000 rpm (standard) / 15000 rpm (optional)

      Motor output: 25/40 kW (standard) / 30/46 kW (optional)

      Accuracy

      Positioning accuracy: 0.005 mm

      Repeatability: ±0.0025 mm

      Guarantee

      Warranty 12 or 24 months
