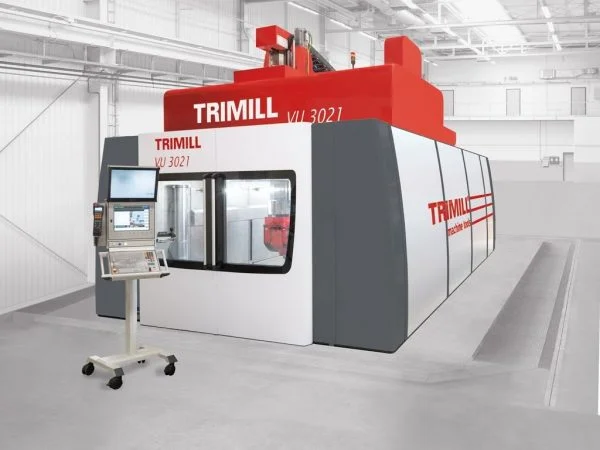

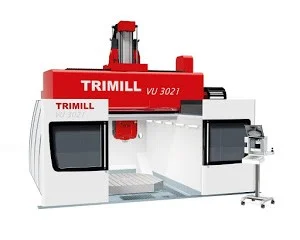

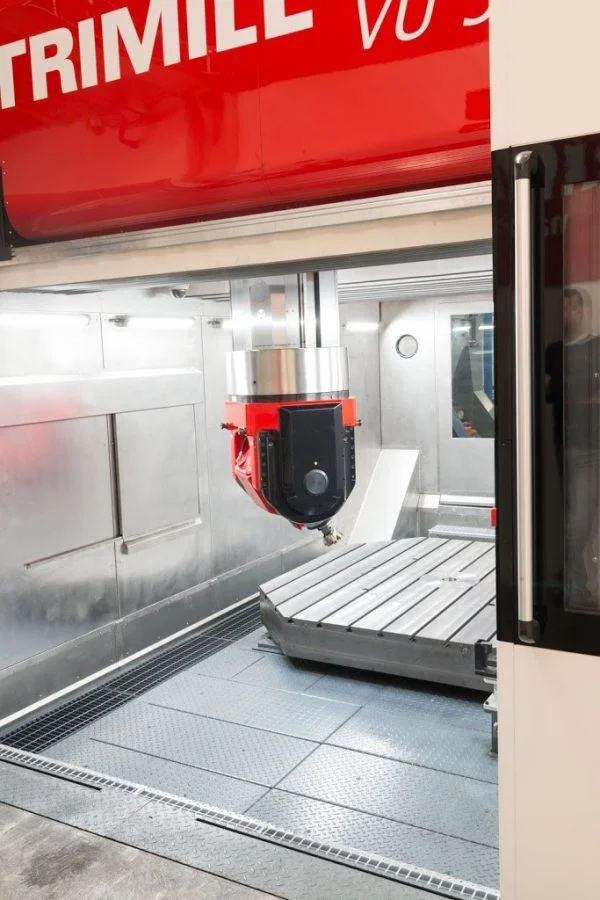

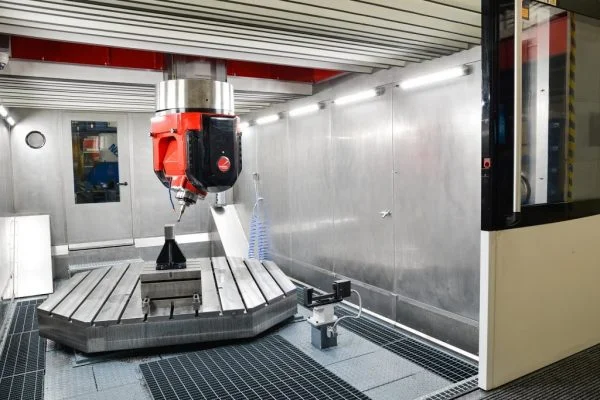

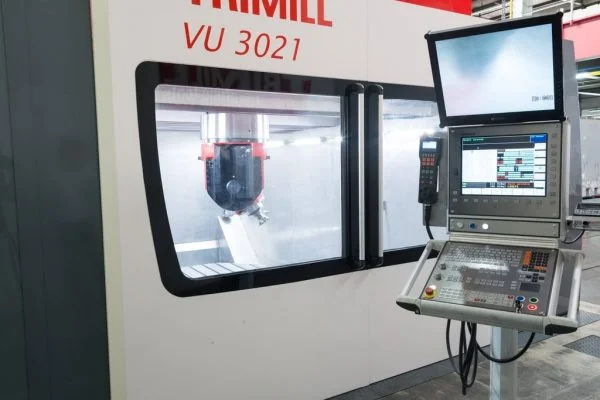

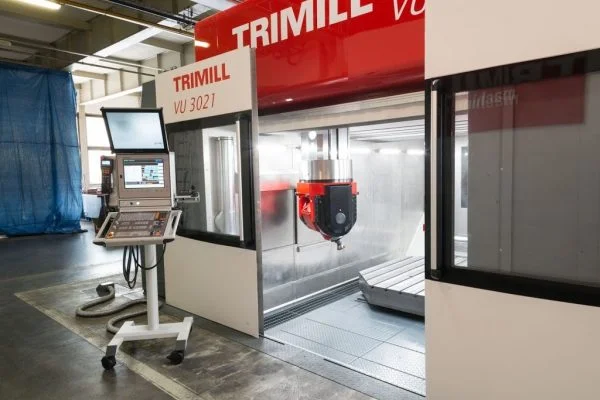

      Vertical Milling Machine 5 axis - Trimill VU3021

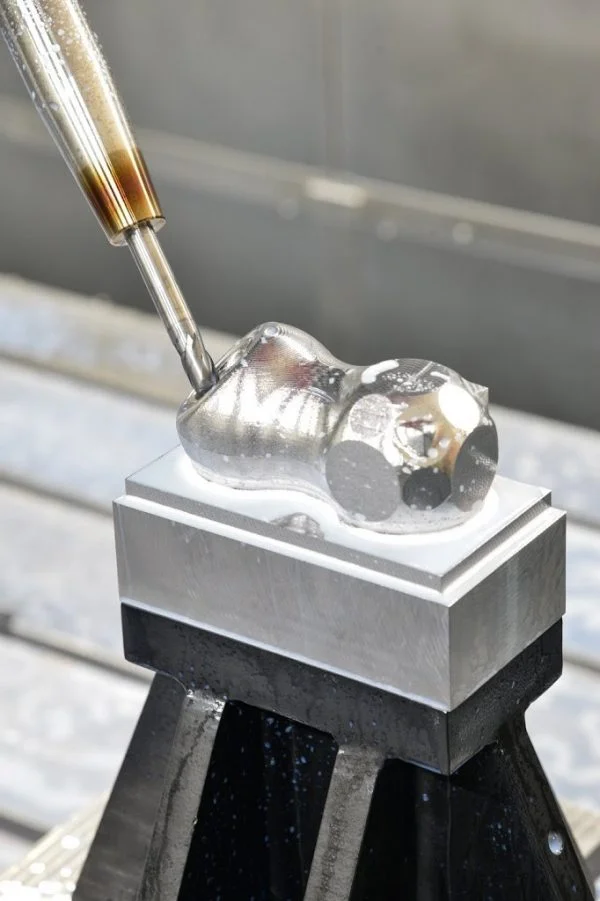

      • Rigid 5-axis machine, especially developed for the pressing tools, injection moulds and forging dies

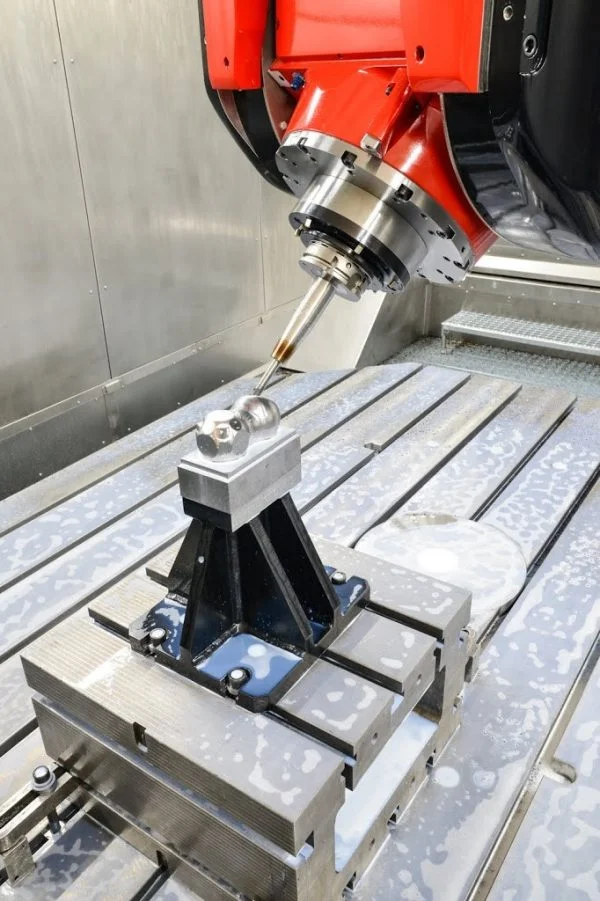

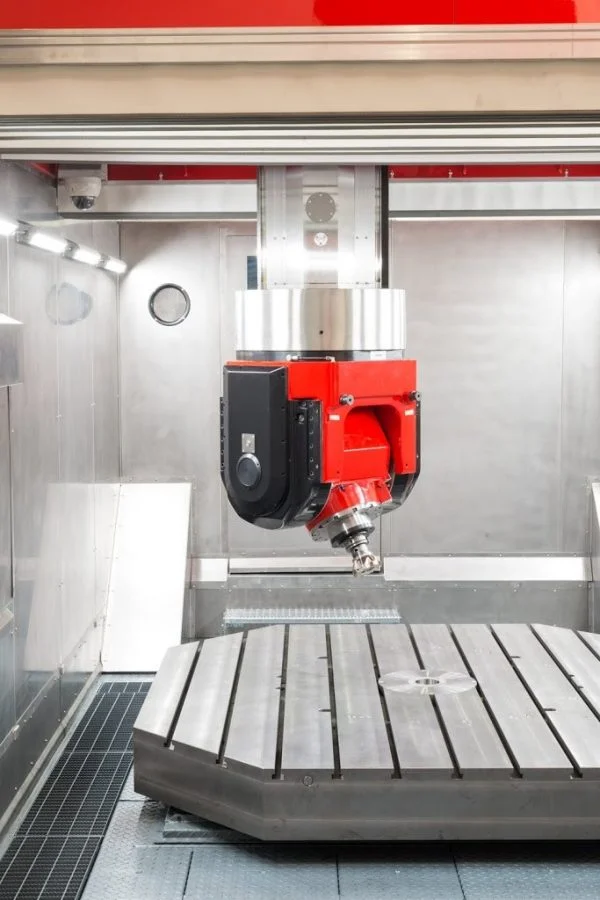

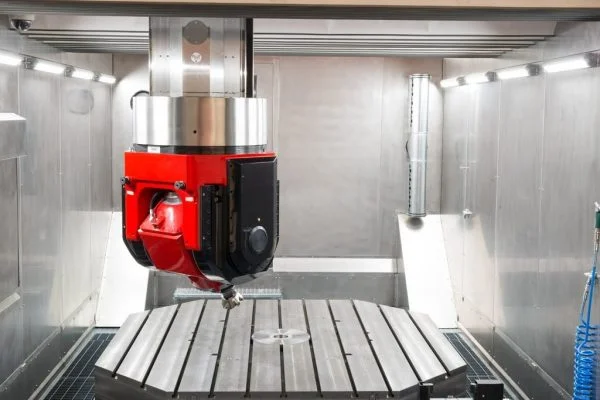

      • 5-axis machining in one set-up achieved with fork-type milling head and rotary table
      • Upper gantry portal machine for high dynamics and accuracy
      • Unique closed design of the cross-beam and cross-slide (box-in-box
        design) with internal, quadruple-guided, ram-type milling unit (Y- and Z-axis)
      • Constantly perfect cutting results thanks to unique thermo-symmetric design
      • Stationary work piece for the highest surface qualities
      • Very compact machine with large working area utilizing minimal floor-space
      • High productivity – roughing and finishing operations in one set-up
      • Customized distance between spindle nose and clamping surface of rotary table
      • Ergonomic configuration – easy access to the machine tool interior
      • Superior cost-performance ratio

      Technical data

      Travels
      X-axis [mm]3.000
      Y-axis [mm]2.100
      Z-axis [mm]1.200
      Rotary table [°]n x 360
      Optional spindle / head
      TypeF2U
      Power (S1/100%) [kW]25
      Power (S6/40%) [kW]32
      Torque (S1/100%) [Nm]194
      Torque (S6/100%) [Nm]239
      Speed [rpm]10.000
      Tool adoptionHSK – A100
      Swivel axis [°]-2/+92
      Clamping torque (swivel axis) [Nm]17.200
      Indexing increment [°]0,001
      Optional spindle / head
      TypeT30U
      Power (S1/100%) [kW]40
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]248
      Torque (S6/100%) [Nm]314
      Speed [rpm]12.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21U
      Power (S1/100%) [kW]42
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]67
      Torque (S6/100%) [Nm]84
      Speed [rpm]24.000
      Tool holderHSK – A63
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]4.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30U CSC
      Power (S1/100%) [kW]50
      Power (S6/40%) [kW]62
      Torque (S1/100%) [Nm]251
      Torque (S6/100%) [Nm]313
      Speed [rpm]20.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30C
      Power (S1/100%) [kW]40
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]248
      Torque (S6/100%) [Nm]314
      Speed [rpm]12.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]8.000
      Clamping torque (rotary axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21C
      Power (S1/100%) [kW]42
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]67
      Torque (S6/100%) [Nm]84
      Speed [rpm]24.000
      Tool holderHSK – A63
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]4.000
      Clamping torque (rotary axis) [Nm]4.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30C CSC
      Power (S1/100%) [kW]50
      Power (S6/40%) [kW]62
      Torque (S1/100%) [Nm]251
      Torque (S6/100%) [Nm]313
      Speed [rpm]20.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Rotary axis [°]+240/+240
      Clamping torque (swivel axis) [Nm]8.000
      Clamping torque (rotary axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21C CSC
      Power (S1/100%) [kW]29
      Power (S6/40%) [kW]38
      Torque (S1/100%) [Nm]69
      Torque (S6/100%) [Nm]91
      rpm [1/min]24.000
      Tool adoptionHSK A-63
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]4.000
      Clamping torque (rotary axis) [Nm]4.000
      Indexing increment [°]continuous
      Clamping surface [mm]2.300 x 2.300
      Workpiece weight [kg]25.000
      Feed rate [mm/min]40.000
      Acceleration [m/s2]4
      Weight of machine [kg]

      Description

      • Rigid 5-axis machine, especially developed for the pressing tools, injection moulds and forging dies
      • 5-axis machining in one set-up achieved with fork-type milling head and rotary table
      • Upper gantry portal machine for high dynamics and accuracy
      • Unique closed design of the cross-beam and cross-slide (box-in-box
        design) with internal, quadruple-guided, ram-type milling unit (Y- and Z-axis)
      • Constantly perfect cutting results thanks to unique thermo-symmetric design
      • Stationary work piece for the highest surface qualities
      • Very compact machine with large working area utilizing minimal floor-space
      • High productivity – roughing and finishing operations in one set-up
      • Customized distance between spindle nose and clamping surface of rotary table
      • Ergonomic configuration – easy access to the machine tool interior
      • Superior cost-performance ratio

      Technical data

      Travels
      X-axis [mm]3.000
      Y-axis [mm]2.100
      Z-axis [mm]1.200
      Rotary table [°]n x 360
      Optional spindle / head
      TypeF2U
      Power (S1/100%) [kW]25
      Power (S6/40%) [kW]32
      Torque (S1/100%) [Nm]194
      Torque (S6/100%) [Nm]239
      Speed [rpm]10.000
      Tool adoptionHSK – A100
      Swivel axis [°]-2/+92
      Clamping torque (swivel axis) [Nm]17.200
      Indexing increment [°]0,001
      Optional spindle / head
      TypeT30U
      Power (S1/100%) [kW]40
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]248
      Torque (S6/100%) [Nm]314
      Speed [rpm]12.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21U
      Power (S1/100%) [kW]42
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]67
      Torque (S6/100%) [Nm]84
      Speed [rpm]24.000
      Tool holderHSK – A63
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]4.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30U CSC
      Power (S1/100%) [kW]50
      Power (S6/40%) [kW]62
      Torque (S1/100%) [Nm]251
      Torque (S6/100%) [Nm]313
      Speed [rpm]20.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Clamping torque (swivel axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30C
      Power (S1/100%) [kW]40
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]248
      Torque (S6/100%) [Nm]314
      Speed [rpm]12.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]8.000
      Clamping torque (rotary axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21C
      Power (S1/100%) [kW]42
      Power (S6/40%) [kW]50
      Torque (S1/100%) [Nm]67
      Torque (S6/100%) [Nm]84
      Speed [rpm]24.000
      Tool holderHSK – A63
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]4.000
      Clamping torque (rotary axis) [Nm]4.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT30C CSC
      Power (S1/100%) [kW]50
      Power (S6/40%) [kW]62
      Torque (S1/100%) [Nm]251
      Torque (S6/100%) [Nm]313
      Speed [rpm]20.000
      Tool holderHSK – A100
      Swivel axis [°]-100/+100
      Rotary axis [°]+240/+240
      Clamping torque (swivel axis) [Nm]8.000
      Clamping torque (rotary axis) [Nm]8.000
      Indexing increment [°]continuous
      Optional spindle / head
      TypeT21C CSC
      Power (S1/100%) [kW]29
      Power (S6/40%) [kW]38
      Torque (S1/100%) [Nm]69
      Torque (S6/100%) [Nm]91
      rpm [1/min]24.000
      Tool adoptionHSK A-63
      Swivel axis [°]-100/+100
      Rotary axis [°]-240/+240
      Clamping torque (swivel axis) [Nm]4.000
      Clamping torque (rotary axis) [Nm]4.000
      Indexing increment [°]continuous
      Clamping surface [mm]2.300 x 2.300
      Workpiece weight [kg]25.000
      Feed rate [mm/min]40.000
      Acceleration [m/s2]4
      Weight of machine [kg]
      View more See less
