Form Talysurf Laser – High range, high resolution surface finish, form and contour measurement system

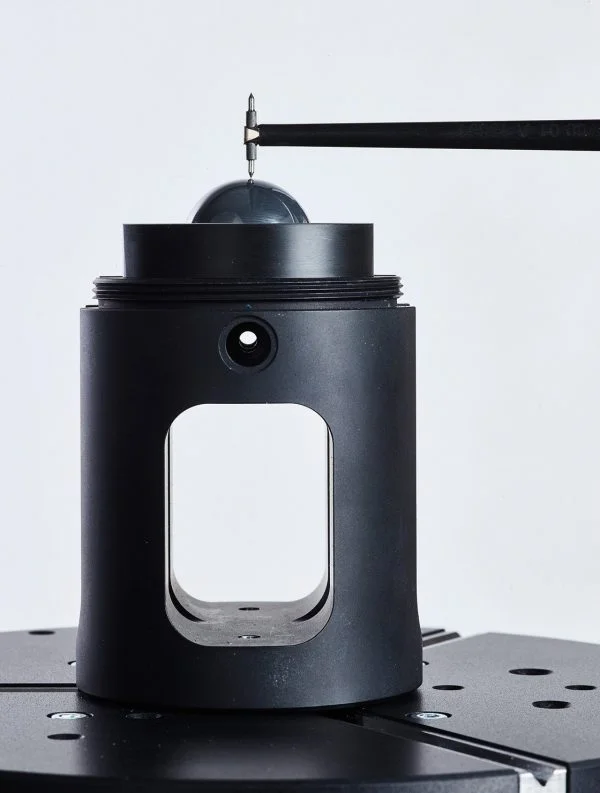

The LASER gauge provides the ability to measure included angle, surface finish and contour in a normal and inverted direction with the same speed and accuracy.

With this type of equipment, the challenges faced daily by manufacturers of bearings, injectors and precision components (angles, radii, shape) can be solved.

One measurement, multiple results, instant feedback

• Surface finish – High resolution gauges with low noise enable roughness, waviness and form in one measurement.
• Step Height – Evaluate step heights with higher resolution gauge ranges to ISO standards and more.
• Contour – Our patented calibration technique enables measurement of radii, angle, height, length, distance.
• Topography – Using an optional motorized Y-stage and Metrology 4.0 software, transform your conventional 2D measurements into 3D.

Powered by Metrology 4.0 – Smart Software

Taylor Hobson’s new advanced software enables dimensioning in accordance with part drawings and provides an exact reflection of the Part Coordinate System (PCS) delivering the final link in the manufacturing loop.

Metrology 4.0 software is easy to use with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function (SMART Move) delivers precise positioning and accurate measurement.

Metrology 4.0 delivers a simple, intuitive interface with virtual display and real time control. The state-of-the-art point and move axis control function (SMART Move) delivers precise positioning and measurement with ease.
