Versatile Large-Envelope X-ray and CT Systems

Nikon’s versatile, large-envelope X-ray and CT systems can inspect items of diverse size and density, internally and externally, enabling them to perform virtually limitless tasks within industry, inspection bureaux and academia.

A multitude of configuration options to meet your exact inspection requirements
Next level Processing

Nikon’s large-envelope system range combines metrology grade, granite-based manipulator construction with a large scanning volume, multi-source flexibility, dual detector functionality and an extensive range of CT acquisition modes, enabling them to excel in any inspection environment, from R&D labs to the shop floor.

Nikon Large Envelope CT Range at a glance

For ease of installation and relocation, the VOXLS 40 C 450 and M2 models are available in a single-piece cabinet enclosure as standard, whereas the ultra-large format C2 and C3 are housed in a modular panelised room. Alternatively, all systems can be offered as manipulator-only configurations for a pre-existing enclosure.

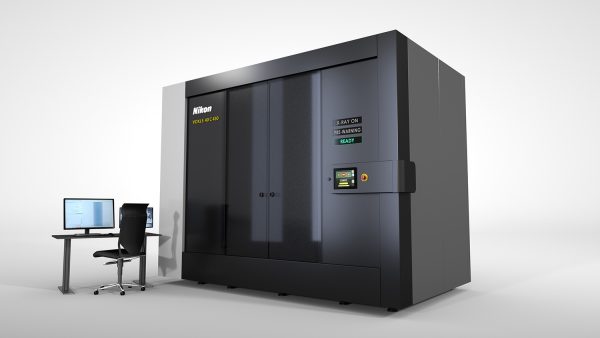

VOXLS 40 C 450

Up to Dual Sources + Dual Detectors
Synchronous-Style Manipulator
Standard Scan Vol:
800 mm (Ø) × 1415 mm (H)
275 kg Max Payload

M2

Up to Triple Sources + Dual Detectors
Bridge-Style Manipulator
Standard Scan Vol:
630 mm (Ø) × 988 mm (H)
180 kg Max Payload

C2

Up to Triple Sources + Dual Detectors
Synchronous-Style Manipulator
Standard Scan Vol:
1090 mm (Ø) × 1285 mm (H)
275 kg Max Payload

C3

Up to Triple Sources + Dual Detectors
Synchronous-Style Manipulator
Standard Scan Vol:
1090 mm (Ø) × 2460 mm (H)
400 kg Max Payload
