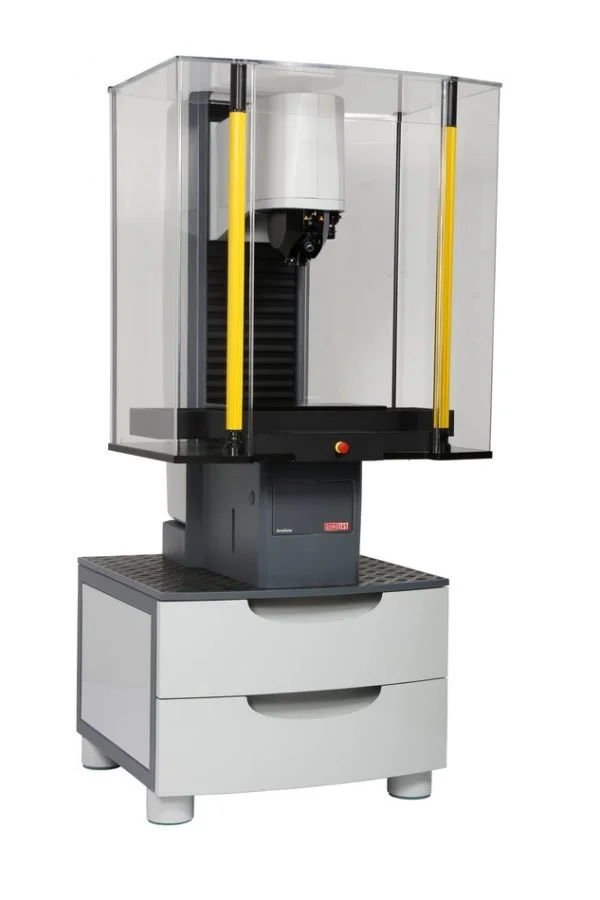

      Hardness testing machines - Emcotest DuraVision Automatic G5 Series 0.3 - 3,000 kgf

      The fully automated DuraVision G5 hardness testers cover a peerlessly broad standard load range of 0.3–250 kgf and 3–3000 kgf. The electronically controlled test cycle provides for a large selection of test methods. The Brinell, Vickers, and Rockwell test methods can be measured in compliance with EN ISO and ASTM standards, and carbon testing is also possible. Knoop and plastic tests can also be conducted with the lower standard load range models. Thanks to its sturdy construction, the DuraVision G5 Automatic is particularly suitable fur use not only in the vicinity of the production environment, but also in the laboratory for quality assurance purposes.



      DuraVision 250 G5

      DuraVision 350 G5

      Load range

      0.3-250 kgf

      3.3000 kgf

      Measurement turret

      Motor-driven

      Motor-driven

      Display

      PC

      PC

      Automation level

      Fully-automatic

      Fully-automatic

      Software

      Ecos Workflow CIS PRO

      Ecos Workflow CIS PRO

      Overview camera

      optional

      optional

      Description

      The fully automated DuraVision G5 hardness testers cover a peerlessly broad standard load range of 0.3–250 kgf and 3–3000 kgf. The electronically controlled test cycle provides for a large selection of test methods. The Brinell, Vickers, and Rockwell test methods can be measured in compliance with EN ISO and ASTM standards, and carbon testing is also possible. Knoop and plastic tests can also be conducted with the lower standard load range models. Thanks to its sturdy construction, the DuraVision G5 Automatic is particularly suitable fur use not only in the vicinity of the production environment, but also in the laboratory for quality assurance purposes.



      DuraVision 250 G5

      DuraVision 350 G5

      Load range

      0.3-250 kgf

      3.3000 kgf

      Measurement turret

      Motor-driven

      Motor-driven

      Display

      PC

      PC

      Automation level

      Fully-automatic

      Fully-automatic

      Software

      Ecos Workflow CIS PRO

      Ecos Workflow CIS PRO

      Overview camera

      optional

      optional
