Nikon NEXIV VMZ-R 3020

NEXIV VMZ-R3020 – Higher speeds and greater precision than ever before

Magnification, AF and illumination conditions can be finely adjusted for each specimen. VMZ-R3020 offers a 300 x 200 mm stroke suitable for measurement of small components such as mechanical parts, molded parts and high-density PCBs.

Key benefits

• Six types of optical zooming head
• Detection of 0.1 mm transparent layer
• 8-segment ring illumination with three incident angles
• High measuring accuracy
• Faster throughput
• 15x high-speed zoom

Applications

• Surface analysis, Surface examination
• Plastic manufacturing, Metal manufacturing
• Cracks and Failure Analysis
• Micro-electronics, Opto-electronics
• Telecom & electronics, Antennae, Telescope optics

Benefits & features

___________________________________________________________________________

Standard magnification zooming heads: type 1 – 3

Type 1, 2 and 3, have Nikon 15× zoom optics with a long working distance, wide FOV and a high NA 0.35. They come with LED episcopic and diascopic illuminators, as well as an LED 8-segment ring illuminator with three incident angles.

_______________________________________________________________________________________

High magnification zooming heads: type 4, TZ

Type 4 and TZ have Nikon 15× and 120× zoom optics with higher magnification and a higher NA 0.46. Type 4 comes with LED episcopic and diascopic illuminators, as well as an LED 8-segment ring illuminator with a 50-degree incident angle. TZ has LED episcopic, diascopic (for higher magnification) and darkfield illuminators.

_______________________________________________________________________________________

Wide field-of-view zooming head: type A

Type A features Nikon 10× zoom optics with the widest FOV, the longest working distance and the highest NA 0.11. It comes with LED episcopic and diascopic illuminators, as well as an LED 8-segment ring illuminator with an 18-degree incident angle.

_______________________________________________________________________________________

8-segment ring illumination with three incident angles

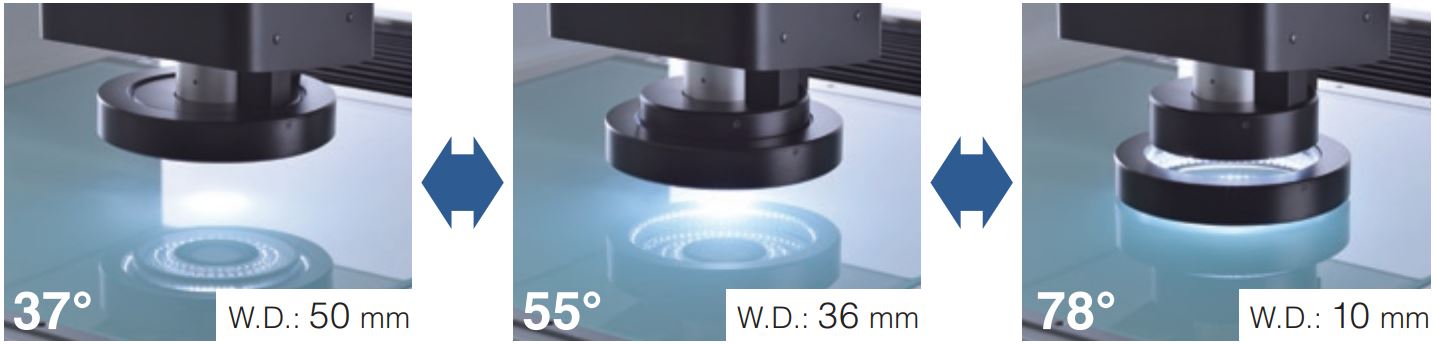

Standard magnification zooming heads (type 1-3) come with 8-segment LED inner and outer ring illuminators as well as episcopic and diascopic illuminators. Incident angles of 37, 55 and 75 degrees, illumination directions by combining any 8-segment lights and light intensity can be adjusted.
