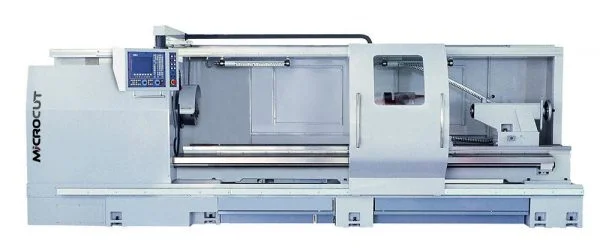

MICROCUT HORIZONTAL TURNING MACHINE SERIES BNC-4000

The flat-bed lathe BNC-4000 with rigid one-piece Meehanite casting bed provides superior accuracy, durability and reliability. BNC-4000 is capable for heavy-duty cutting. Large working capacity (turning diameter 1020mm, turning length 1M~6M) with wide selection of spindle bores including the largest bore of 355mm for a wide application of various industries. Large bore is particularly suitable for oil & gas Industry.

Features

Big bore option: 106mm, 153mm, 254mm and 355mm

Faster rapid feed 10 & 12 m/min for Z axis

Automatic powerful speed changer provides high output torque

Heavy loading tailstock

Swing in gap	1280 mm
Swing over bed	1020 mm
Swing over cross slide	680 mm
Max. cutting length (with turret)	1000 / 2000 / 3000 / 4000 / 5000 / 6000 mm
X axis travel	550 mm
Z axis travel	1150 / 2150 / 3150 / 4150 / 5100 / 6100 mm
Rapid feed (X & Z)	X:10 / Z:12 m/min
Spindle bore	106 (std.) / 153, 254, 356 (opt.) mm
Spindle speed	Fagor / Siemens: 0-1480 (106mm/153mm bore) rpm 0-650 (254mm bore) rpm 0-500 (356mm bore) rpm Fanuc: 0-1200 (106mm/153mm bore) rpm 0-650 (254mm bore) rpm 0-500 (356mm bore) rpm
Spindle motor	Fagor: 22/33 kw Fanuc: 22/26 kw Siemens: 22/33 kw
Machine weight	10000/10800/11500/13000/14000/15000 kg

Swing in gap

1280 mm

Swing over bed

1020 mm

Swing over cross slide

680 mm

Max. cutting length (with turret)

1000 / 2000 / 3000 / 4000 / 5000 / 6000 mm

X axis travel

550 mm

Z axis travel

1150 / 2150 / 3150 / 4150 / 5100 / 6100 mm

Rapid feed (X & Z)

X:10 / Z:12 m/min

Spindle bore

106 (std.) / 153, 254, 356 (opt.) mm

Spindle speed

Fagor / Siemens:
0-1480 (106mm/153mm bore) rpm
0-650 (254mm bore) rpm
0-500 (356mm bore) rpm
Fanuc:
0-1200 (106mm/153mm bore) rpm
0-650 (254mm bore) rpm
0-500 (356mm bore) rpm

Spindle motor

Fagor: 22/33 kw

Fanuc: 22/26 kw
Siemens: 22/33 kw

Machine weight

10000/10800/11500/13000/14000/15000 kg
