Nikon Eclipse LV100DA-U
Motorized microscope with episcopic/diascopic illumination, which enables the control of objectives, light intensity, and observation method detection from the camera control unit
A motorized microscope with episcopic/diascopic illumination ,which meets the various needs of observation, inspection, research, and analysis across a wide range of industrial fields. Higher NA and a longer working distance than ever before mean superior optical performance and efficient digital imaging.
Max. sample size: 150 x 150 mm
Key benefits
- Modular microscope body applicable with various observations and tasks
- Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
- Easy digital imaging
Microscope Type
- Combined reflected/transmitted illumination models
- Motorized type
(Nosepiece / light intensity / aperture stop / observation method selector)
Modularized microscope body applicable with various observations and tasks
Compatible with brightfield, darkfield, simple polarizing, DIC, epifluorescence and two-beam, interferometry observations. Furthermore, phase contrast and DIC observation with diascopic illumination are also possible.
It supports diverse and advanced research, analysis and inspection.
Compatible observation methods:
Compatible stages
- LV-S32 3×2 stage (Stroke: 75 x 50 mm with glass plate)
*Can be fitted with LV-S32SGH slide glass holder - LV-S64 6×4 stage (Stroke: 150 x 100 mm with glass plate)
- LV-SRP P revolving stage
- P-GS2 G stage 2 (Used with stage adapter LV-SAD)
- NIU-CSRR2 Ni-U right handle rotatable ceramic stage (Stroke: 78 x 54 mm)
- C-SR2S right handle stage (Stroke: 78 x 54 mm: Used with stage adapter LV-SAD)
Newly developed CFI60-2 series
Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
CFI60-2 series offers higher NA and longer working distances than ever before.

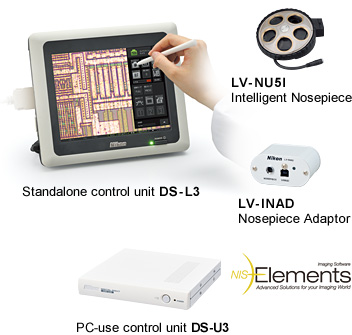

Easy digital imaging
Combining the camera control unit with the LV100DA-U, allows greater information detection and control over a variety of key functions, including the use of objective lenses, light intensity of the illumination unit, aperture stop, observation method adjustment (brightfield/darkfield/fluorescence) and magnification.
In addition, the information is automatically converted to appropriate calibration data when changing magnification.
*With the DS-L3, only information detection is possible. With the DS-U3, all control is possible.
- Digital Camera System for Microscopy Digital Sight Series
- Imaging Software NIS-Elements
