      Inverted Metallurgical Microscope Nikon Eclipse MA100N

      Inverted Metallurgical Microscope Nikon Eclipse MA100N

      The Nikon Eclipse MA100N inverted metallographic microscope is an optical system that has been developed for brightfield and simple polarized observation. Due to its compact design, it is excellent for metallographic research and use in the production area of the quality control department.

      Nikon has developed this simple yet durable model that allows for high contrast observation and image capture. In addition, the high-intensity LED source reduces the need for frequent lamp replacement.

      As an inverted metallographic microscope designed for LED illumination, it has a body structure 11% smaller than conventional models, thus saving users approximately 11% of space.

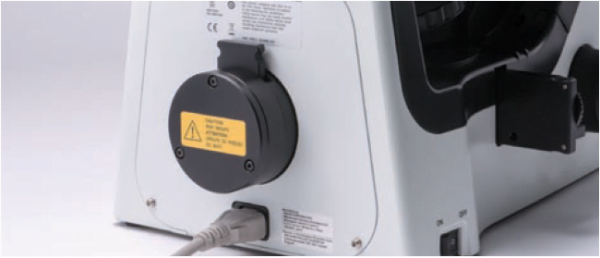

      High intensity LED light source

      Compared to a conventional halogen light source, the Nikon Eclipse MA100N Inverted Metallographic Microscope is equipped with a high-intensity LED light source that uses only about one-third of the electricity and lasts 30 times longer.



      Superior durability

      Nikon has developed a rectangular hand-held table made of three metal plates that gives the MA100N Inverted Metallographic Microscope superior control and durability for observing heavy samples up to 5kg or samples embedded in resin that can be mounted on a rotating fixture.



      CFI60-2 range of objectives

      Renowned for the accuracy of their results, the CFI60-2 range of objectives now offers the longest working distance and the ability to correct chromatic defects more easily than ever before.

      Download the brochure

      Description

      Inverted Metallurgical Microscope Nikon Eclipse MA100N

      The Nikon Eclipse MA100N inverted metallographic microscope is an optical system that has been developed for brightfield and simple polarized observation. Due to its compact design, it is excellent for metallographic research and use in the production area of the quality control department.

      Nikon has developed this simple yet durable model that allows for high contrast observation and image capture. In addition, the high-intensity LED source reduces the need for frequent lamp replacement.

      As an inverted metallographic microscope designed for LED illumination, it has a body structure 11% smaller than conventional models, thus saving users approximately 11% of space.

      High intensity LED light source

      Compared to a conventional halogen light source, the Nikon Eclipse MA100N Inverted Metallographic Microscope is equipped with a high-intensity LED light source that uses only about one-third of the electricity and lasts 30 times longer.



      Superior durability

      Nikon has developed a rectangular hand-held table made of three metal plates that gives the MA100N Inverted Metallographic Microscope superior control and durability for observing heavy samples up to 5kg or samples embedded in resin that can be mounted on a rotating fixture.



      CFI60-2 range of objectives

      Renowned for the accuracy of their results, the CFI60-2 range of objectives now offers the longest working distance and the ability to correct chromatic defects more easily than ever before.

      View more See less

      Do you have more questions?

      You can request an offer

      Inverted Metallurgical Microscope Nikon Eclipse MA100N

      Request offer

      Funding

      Financing solutions for the purchase of new equipment, through BCR Leasing or Grenke.

      See Financing Methods

      Specifications

      Observation image

      reversed image

      Observation method

      brightfield and polarization method

      Stage

      rectangular 3-plate stage with 50×50 mm stroke

      Illuminator

      internal power supply white LED light source

      Binocular tube

      built-in binocular tube, 45 inclination angle and 50-75 mm interpapillary adjustment

      External dimensions

      229 x 551 x 404 (WxDxH)

      Weight

      10 kg.

      Applications

      MetallurgyFrom extraction to production, metallurgy and metallography are used to examine the microscopic mechanisms that affect the behaviour of metals, their composites and alloys. A well manufactured material can be...
