      Speroni STP AutoShrink CNC - tool presetter

      The STP FUTURA AutoShrink is our 4th generation fully integrated Shrink Fit and presetting system.
      Developed by SPERONI in association with Briney Tooling Systems first in 1999, this solution is unmatched in terms of accuracy, repeatability ergonomics and safety. The STP FUTURA AutoShrink delivers a seamless and 100% safe shrinking and setting process.

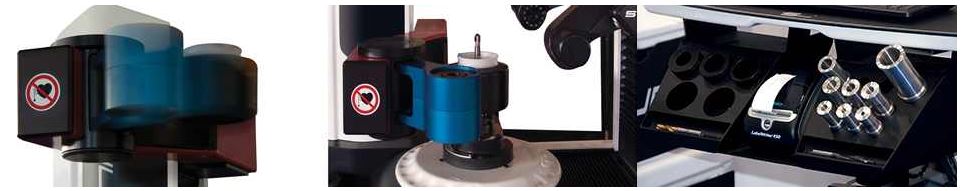

      Fully Integrated and hands-off system for heating and cooling of the tool-holders.

      Software

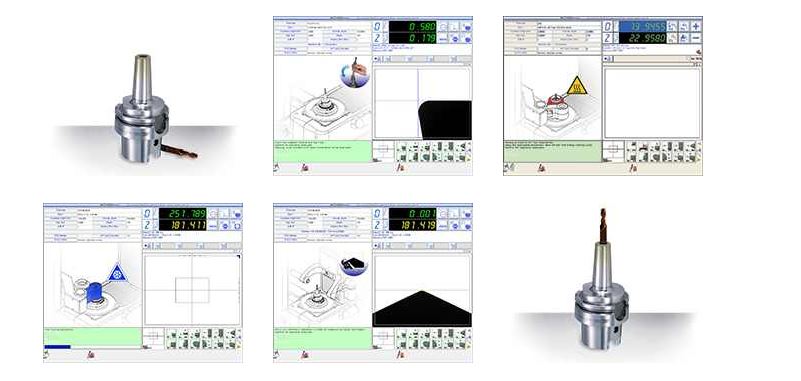

      Easy step by step and mistake free dedicated software module guides the operator in the correct setting of any shrink tool assembly. Each step of the process is guided by clear graphics as well as text instructions for maximum user friendliness. The disassembly process is also just as well guided and full proof.

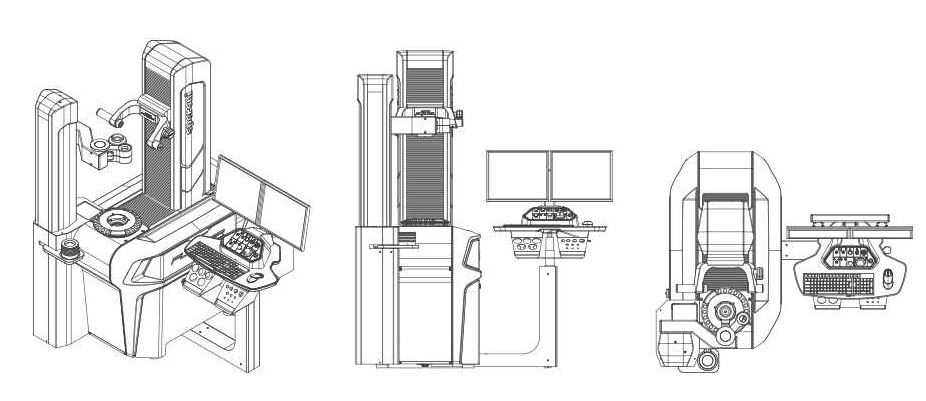

      Technical data

      STP 44STP 46STP 48STP 64STP 66STP 68STP 84STP 86STP 88
      max Ø400mm400mm400mm600mm600mm600mm800mm800mm800mm
      max H400mm600mm800mm400mm600mm800mm400mm600mm800mm

      Download the brochure

      Description

      The STP FUTURA AutoShrink is our 4th generation fully integrated Shrink Fit and presetting system.
      Developed by SPERONI in association with Briney Tooling Systems first in 1999, this solution is unmatched in terms of accuracy, repeatability ergonomics and safety. The STP FUTURA AutoShrink delivers a seamless and 100% safe shrinking and setting process.

      Fully Integrated and hands-off system for heating and cooling of the tool-holders.

      Software

      Easy step by step and mistake free dedicated software module guides the operator in the correct setting of any shrink tool assembly. Each step of the process is guided by clear graphics as well as text instructions for maximum user friendliness. The disassembly process is also just as well guided and full proof.

      Technical data

      STP 44STP 46STP 48STP 64STP 66STP 68STP 84STP 86STP 88
      max Ø400mm400mm400mm600mm600mm600mm800mm800mm800mm
      max H400mm600mm800mm400mm600mm800mm400mm600mm800mm
