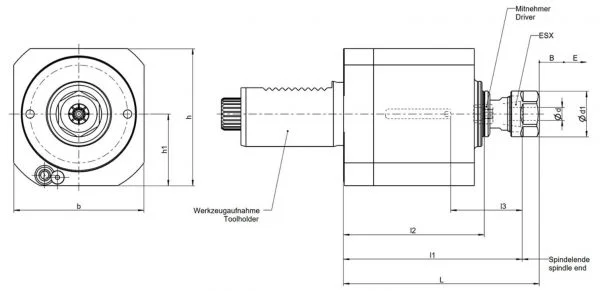

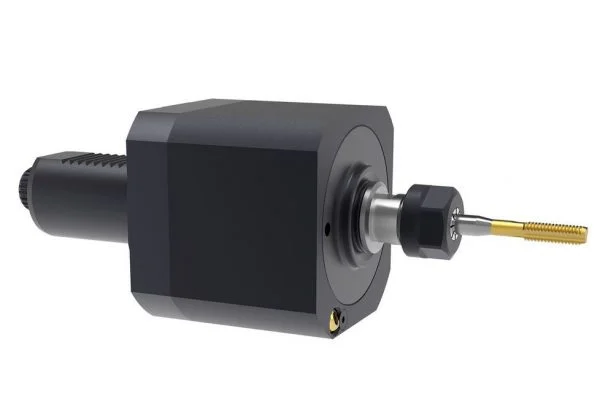

      Bilz Self Reversing Tapping Attachment GNCN High performance tapping attachments with integrated reversing gear

      Application

      Application: tapping, roll forming
      Machine type: machining centres and special purpose machines

      Features

      • self reversing gear
      • direct collet location
      • damping elements between drive key in the spindle and the coupling sleeve
      • balls used in the couplings elements
      • hydrostatic pressure compensation for IC version
      • constant tapping speed (through built- in reversing gear)
      • exchangeable drivers BN17…
      • built-in length adjustment screw
      • sealed, stable version of the stop arm

      Advantages

      • reversing of machine spindle not required – shortest processing time possible, minimum time saving 200 – 400 ms per thread, substantially less electrical power consumption
      • high concentricity – better life time of the tool, reduced wear, less unbalanced mass
      • avoiding premature wear – less maintenance intensive
      • exact disengaging point –  exact thread depth, high repeat accuracy
      • no axial movement of the spindle into tension, even when the coolant flow is blocked – no risk of collision through extended tool
      • ideal cutting conditions – longer tool life time
      • positive torque transmission of the tap and of the driver in the spindle – no twisting or slipping of the tap in the collet
      • taps can be set to the required length – no input data error of tool length in machine offset (no risk of collision)
      TRANSPORT GRATUIT

      pentru toate produsele până la sediul dvs.

      CONSULTANȚĂ

      soluția optimă pentru aplicația dvs.

      MONTAJ

      punerea în funcțiune și efectuarea testelor

      INSTRUCTAJ

      instruirea personalului pentru operare optimă.

      SERVICE TEHNIC

      în perioada garanției și post-garanție.

      Descriere

      Application

      Application: tapping, roll forming
      Machine type: machining centres and special purpose machines

      Features

      • self reversing gear
      • direct collet location
      • damping elements between drive key in the spindle and the coupling sleeve
      • balls used in the couplings elements
      • hydrostatic pressure compensation for IC version
      • constant tapping speed (through built- in reversing gear)
      • exchangeable drivers BN17…
      • built-in length adjustment screw
      • sealed, stable version of the stop arm

      Advantages

      • reversing of machine spindle not required – shortest processing time possible, minimum time saving 200 – 400 ms per thread, substantially less electrical power consumption
      • high concentricity – better life time of the tool, reduced wear, less unbalanced mass
      • avoiding premature wear – less maintenance intensive
      • exact disengaging point –  exact thread depth, high repeat accuracy
      • no axial movement of the spindle into tension, even when the coolant flow is blocked – no risk of collision through extended tool
      • ideal cutting conditions – longer tool life time
      • positive torque transmission of the tap and of the driver in the spindle – no twisting or slipping of the tap in the collet
      • taps can be set to the required length – no input data error of tool length in machine offset (no risk of collision)
