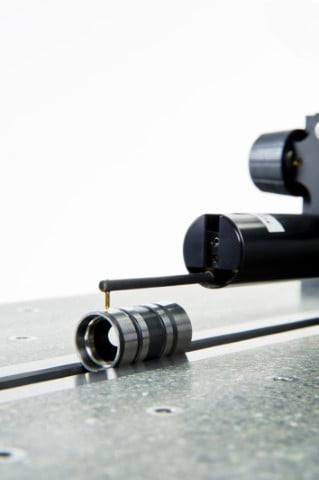

Taylor Hobson Intra Touch
Precision shop floor solutions for surface finish and contour measurement
Housed in a rugged enclosure, the Intra has a proven history of maintaining accuracy of measurement without
the need for constant maintenance or support. Quality, flexibility and ease-of-use have enabled the Intra to
become a shop-floor standard across a wealth of different industries.
Intra touch is a perfect choice. It combines industry leading specification with simplicity of operation for
unbeatable practicality and value.
Intra touch features and benefits

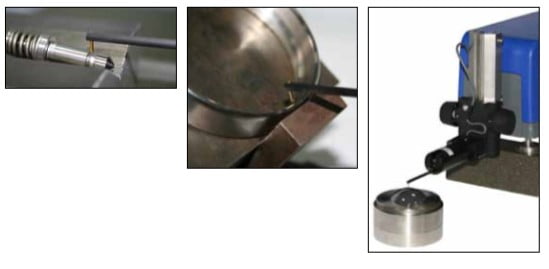

• 1 mm, 2 mm & 28 mm configurations Delivers form (contour) as well as surface finish measurement capability for precision metal forming and other applications.
• 50 mm horizontal traverse Ideal for the majority of shop floor applications. The unit combines both accuracy and portability.
• 0.40 um / 50 mm straightness error The high accuracy traverse datum makes possible skidless measurement of waviness, form and contour, even on large components.
• 0.5 um horizontal data spacing Small components and features can be measured more effectively than ever before. Reduced run-up and run-down length further improve usability
• Manual column For large or tall components the available manual column provides a stable, dedicated work station for improved throughput.
Talyprofile software – comprehensive surface finish analysis
The Intra touch system includes everything important to the measurement of surface finish. Fundamental roughness and waviness parameters are included, plus form error analysis, feature exclusion, zoom tool and full programmability for shop floor applications.

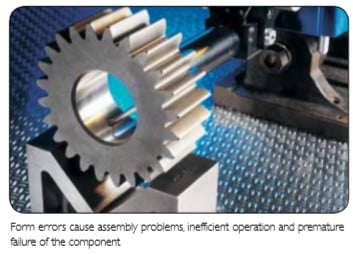

• Form analysis Measure and evaluate radius, angle (slope) and dimension
• Simple user interface Combines with system programmability to deliver a true shop floor solution; custom designs available.
• Dual profile analysis* Allows comparison of measurements for wear, tolerancing, etc.

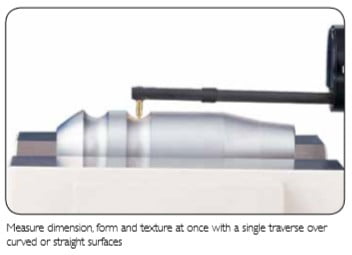

• Contour analysis† Software utility for dimensional applications, allowing design data and measurements to be directly compared, and error results obtained. Special hardware is also available for widerange applications.
• TalyMap 3D analysis Software utility for topography applications; special hardware is also required.

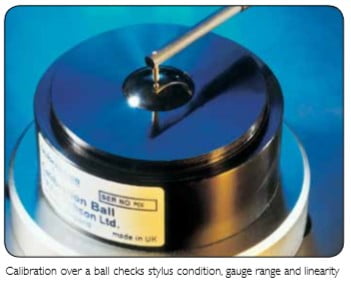

Advanced surface finish and contour analysis

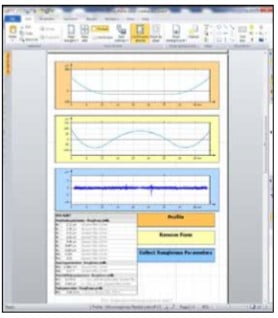

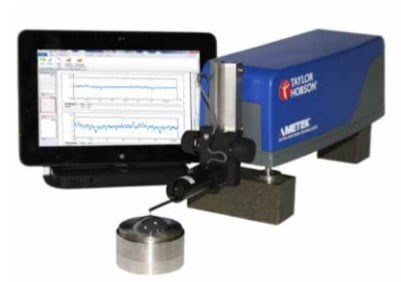

Talyprofile is a dedicated Windows tablet-based software package designed for use with Intra touch. Two versions are available. Talyprofile “Silver“ has all functions typically used for a shopfloor inspection, including R&W parameters, a statistics module and full report printing. Talyprofile “Gold” has all the benefits of Talyprofile “Silver” with the addition of complete laboratory analysis functions.
