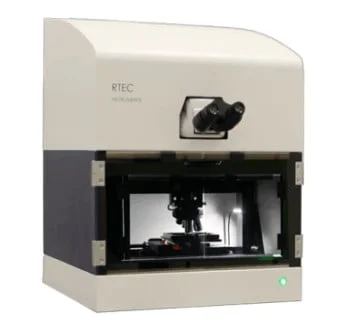

3D Universal Profiometer Overview
The state of the art Rtec Universal Profilometer has revolutionized optical profilometer. Manufactured at silicon valley, California. It is used by several top labs, universities and industries.
The UP-24 uniquely combines 4 imaging modes on one head. With click of a button the imaging mode changes. This combination allows to image any surface with ease – transparent, flat, dark, flat, curved etc
Each imaging mode has an advantage and all techniques are complementary to each other
3D Optical Profiler Combines
● White light interferometer
● Spinning Disk Confocal microscopy
● Dark field microscopy
● Bright field microscopy
Main Platform Specifications
Specifications
● Standard motorized stage 150x150mm (Optional 210x310mm)
● Standard turret, motorized turret optional
● Vertical range up to 100mm
● Tip tilt stage 6 degree
● XY Stage resolution 0.1um
● Auto Stitching
Models
● Sigma head – White Light Interferometer Only
● Lambda head – White Light Interferometer + Confocal + Dark field + Bright Field
Applications
● Roughness
● Volume Wear
● Step height
● Film Thickness
● Topography
Combination of multiple optical techniques on same platform allows the tester to measure almost any kind of sample with nm resolution. The profilometer comes with powerful analysis software thats is compliant with several standards.
