Echipament pentru setare si presetare - Microrep PLS 800 / PLS 1200

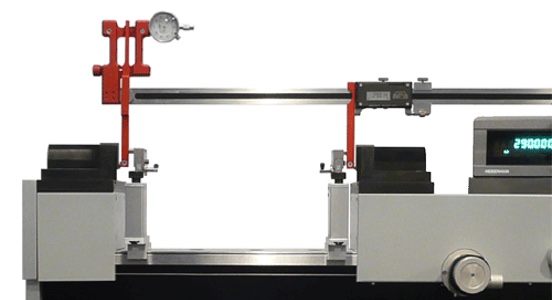

Instrument setting and preset - Microrep PLS 800 / PLS 1200

For setting instrument and length measurement. With an absolute travel of 800 mm | 1200 mm, the PLS is ideal for setting all comparative instruments such as bore gage, external micrometers, internal micrometer, calipers, etc as well as for length measurement at workshop level.

External Micrometer

External micrometer setting and checking.

Internal Micrometer

Internal micrometer setting and checking.

Inside Caliper

Inside caliper setting and checking.

Outside Caliper

Outside caliper setting and checking.

Bore gage

Bore gage setting and checking.

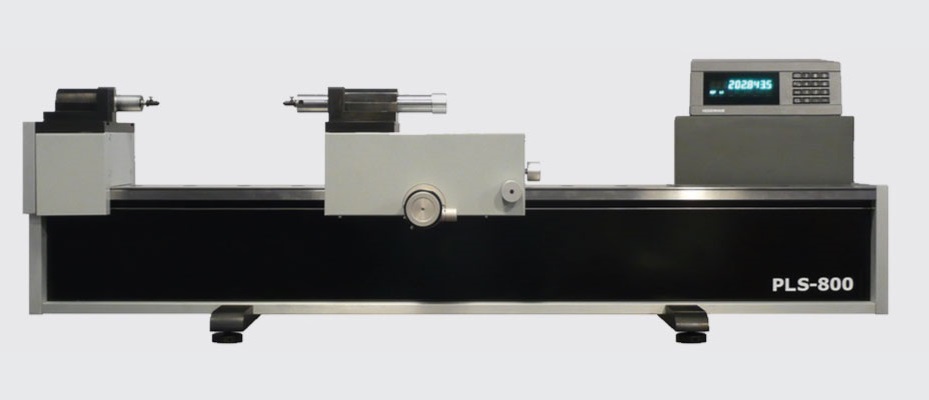

PLS 800 Computerized version

PLS 800 is also available with PC and software so to provide automatic preset for inside and outside measurement, as well as for providing a more reliable gage management system.

Specs:

Equipped with Heidenhain reading scale with 0.1 µm resolution

Model	PLS 800	PLS 1200
absolute travel	820 mm	1220 mm
internal micrometer	0 – 800 mm	0 – 1200 mm
external micrometer	50 – 850 mm	50 – 1250 mm
external caliper	50 – 850 mm	50 – 1250 mm
internal caliper	0 – 800 mm	0 – 1200 mm
bore gage	0 – 800 mm	0 – 1200 mm
