Video endoscope- ITConcepts iRis DVR5
Endoscop portabil – ITConcepts iRis DVR 5
5“ high resolution display
Swivel monitor
Focusable, interchangeable lenses
Brilliant picture quality
Ergonomic handle
High power LED light source
Temperature resistant up to 140 ° C
Tactile and precise articulations control
Bright and high-contrast display

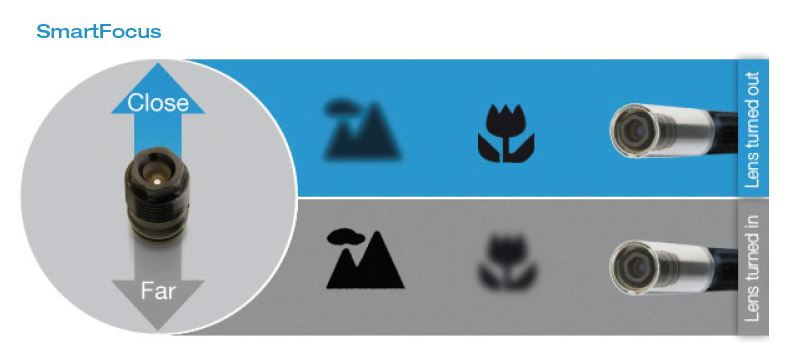

Smart focus
Adjustable focus lenses
Operating unit
| Display size: | 5.0″ (12.7 cm) TFT colour | ||||
| Display resolution: | VGA (640 x 480 Pixel) | ||||
| Operating system: | Real-time operating system, with on-screen menu | ||||
| User interface: | Direct action keys / function keys / arrow keys | ||||
| Languages: | English, German, Polish, French, Spanish, Italian, Turkish | ||||
| Video interface: | Composite video-out (BNC) | ||||
| Power supply, primary: | Rechargeable Li-ion battery | ||||
| Power supply, secondary: | 12V adapter (optional accessory) | ||||
Documentation | |||||
| Video format: | MPEG4 (.avi) (with time and date stamp) | ||||
| Image format: | BMP (.bmp) (with time and date stamp) | ||||
| Storage: | SDHC memory card up to 32 GB (FAT32) | ||||
Measurement | |||||
| Method: | Comparative Measurement | ||||
Camera control | |||||
| Image sensor: | High resolution Super HAD CCD image sensor | ||||
| White balance: | Factory default or user defined | ||||
| AGC level (gain control): | Adjustable | ||||
| Gamma: | Adjustable | ||||
Image control | |||||
| Zoom: | 16 step digital zoom | ||||
| Invert: | Horizontal and vertical image inversion | ||||
| Brightness: | Adjustable | ||||
| Contrast: | Adjustable | ||||
| Colour: | Adjustable | ||||
| Text annotation: | Built-in text overlay generator | ||||
Illumination | |||||
| Type: | High-power LED with high transmission fiberoptics | ||||
| Illumination control: | 3 steps | ||||
| Colour temperature: | approx. 6500 k | ||||
| Average lamp lifetime: | approx. 5000 h | ||||
Probe | |||||
| Diameter: |
| ||||
| Working length: |
| ||||
| Articulation (bending neck): |
| ||||
| Integrated objective lens: |
| ||||
| Interchangeable objective lens: |
| ||||
| Side view tip adapter: |
| ||||
| Braid: | Multi-layer tungsten braid on PU jacket | ||||
Interchangeable Objective Lenses & SVTA | ||||
| PROBE | DOV | FOV | DOF | CODE |
| 4.0 mm | 0° | 60° | 7 – 50 mm | |
| 4.0 mm | 0° | 60° | 4 – 10 mm | SD |
| 4.0 mm | 0° | 90° | 15 mm – ∞ | |
| 4.0 mm | 0° | 90° | 10 – 30 mm | SD |
| 4.0 mm** | 90° | 60° | 5 – 45 mm | SVTA |
| 6.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 6.0 mm | 0° | 60° | 8 mm – ∞ | YELLOW-B |
| 6.0 mm | 0° | 90° | 5 mm – ∞ | RED |
| 6.0 mm | 0° | 120° | 3 mm – ∞ | GREEN |
| 6.0 mm** | 90° | 60° | 5 – 15 mm | SVTA-CF |
| 6.0 mm** | 90° | 60° | 15 – 50 mm | SVTA-FF |
| 8.0 mm | 0° | 28° | 25 mm – ∞ | BLUE |
| 8.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 8.0 mm | 0° | 60° | 8 mm – ∞ | YELLOW-B |
| 8.0 mm | 0° | 90° | 8 mm – ∞ | SILVER-B |
| 8.0 mm | 0° | 90° | 5 mm – ∞ | RED |
| 8.0 mm** | 90° | 60° | 5 mm – ∞ | SVTA |
| DOV = Direction of View FOV = Field of View DOF = Depth of Focus SVTA = Side View Tip Adapter | CF = Close Focus FF = Far Focus B = Bright objective lens ** = Compatible to FOV 60° | |
Construction | ||
| Ergonomics: | ± 90° rotatable display unit, alt. ±90° rotatable scope handle | |
| System weight: | 1,35 Kg | |
| Dimensions: | 180 mm x 105 mm x 45 mm | |
| Housing: | Rugged PU, with integrated rubber shock caps | |
Operating environment | ||
| Tip operating temperature: | -13°F to 176°F (-25°C to +80°C) (284°F/140°C less than 5 Minutes) | |
| System operating temperature: | -13°F to 115°F (-25°C to +46°C) | |
| Storage temperature: | -13°F to 140°F (-25°C to +60°C) | |
| Relative humidity: | 95 % max. – non condensing | |
| Waterproof: | Probe and distal end up to 14.7 psi (1 bar- 10.2 m H2O) | |
| Resistance: | Probe and distal end to oils and saline (5%) | |
| Carrying Case: | 508 mm x 373 mm x 147 mm / 4,5 kg | |
Manufacturer’s Data | ||
| Country of Origin: | Germany |
